21/11/2024

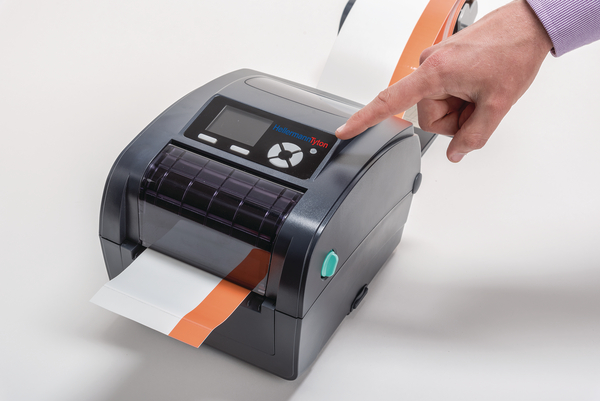

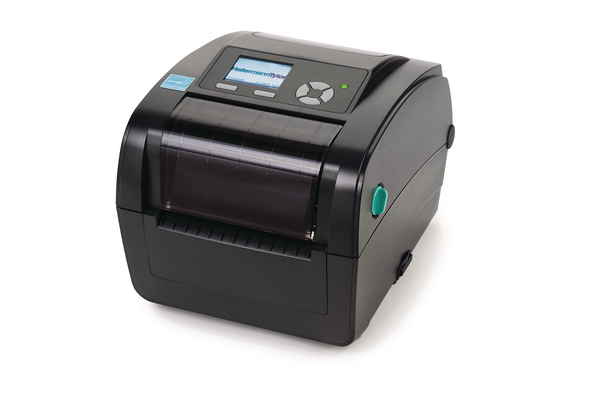

Thermal transfer printer, desktop, 300dpi, black
Art.-No. 556-00230 | TT230SM-PL-BK Details

  • Premium TT4000+ printer series - intended for heavy-duty industrial applications
  • High quality 300dpi print head is available and is ideally suited for high definition graphic
  • Highly effective and reliable printer able to produce medium and high volume labels, heatshrink, and Tiptags
  • Print speeds up to 125mm per second (5" per second) are possible dependant on the material you wish to print
  • Standard TT430 printer - entry-level 300dpi printer that is specifically designed to run HellermannTyton’s standard range of adhesive labels and ShrinkTrak
  • Best suited for those with small to medium volume print runs
  • Standard range of HellermannTyton ribbons can also be used
Show more
Colour Black (BK)
Material Plastic (PL)
PART DESCRIPTION TT230SM-PL-BK
Pack Cont. 1pc.
Package Content packed in EA
Print resolution DPI 300dpi
Type TT230SM
Depth (D) 279.4mm
Height (H) 172.0mm
Label Width Max (imperial) 4.40"
Label Width Min (imperial) 1.0"
Label Width min - max 25.4 - 111.8 mm
Length (L) 279.4mm
Print Material Height Max (metric) 990.6mm
Print Material Width Max (metric) 111.76mm
Print Material Width Min (metric) 25.4mm
Print Method thermal transfer print
Width (W) 201mm
CE Certification Yes
CSA Certified No
Max. Print Width 4"
Max. Print Width 101.6mm
Operating Temperature +4 °C to +40 °C
Printer Memory 8MB RAM
ROHS compliant Yes
Specifications
UL Listed (US and Canada) Yes
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UL-File Number E178707
UV-Stabilised No
Country of Origin CN
Dimensions W x H x D 201 mm x 172.0 mm x 279.4 mm
GTIN-13 / EAN 4031026408118
Packaging 1 - Weight (kg) 6.8kg
Storage Temperature -34 °C to +71 °C
ETIM 7.0 Key EC001672
ETIM 8.0 Key EC001672
ETIM 9.0 Key EC001684
UNSPSC Key 39131505
Variant desktop
