07/11/2024

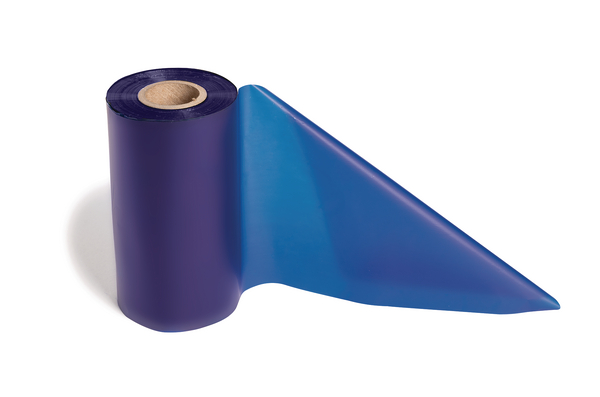

Thermal transfer ribbon, W=110.0mm, violet, 300m
Art.-No. 556-00160 | TT822OUT7-PET-VT |  Details

    • Thermal transfer ribbons for highest quality and performance of printed labels
    • Ribbons are specifically designed to maximise print performance for the recommended material
    Add to watchlist
    Downloads Datasheet
    e-Learning
    Application The thermal transfer print technology is based on heating up certain dots in the print head. This transfers the ink very precisely from the ribbon onto the surface of the printed material.
    Colour Purple (PE)
    Material Polyester Film (PET)
    PART DESCRIPTION TT822OUT7-PET-VT
    Pack Cont. 1pc.
    Package Content packed in EA
    Product Family TT822:- Smudge, Scratch, Oil and Benzene Resistant
    Product Group Thermal Transfer Ribbons for
    Type TT822OUT7
    Variant Coloured ribbon
    Length (L) 300m
    Print Method thermal transfer print
    Recommended Material

    323, 823, 880, 892, 1203, 1204, 1206, 1208, 1210, 1211, 1213, 1216, 1220, 1221, 1232, 1251
    Width (W) 110.0mm
    CE Certification No
    CSA Certified No
    Halogen-free No
    Operating Temperature +4 °C to +82 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Dimensions W x H x D 110.0 mm x
    GTIN-13 / EAN 4031026668154
    Packaging 1 - Weight (kg) 0.30kg
    Reel Length 984.0ft
    Reel Length 300m
    Storage conditions Maximum 2 years after production date at -5°C to +40°C and 20% to 80% relative humidity.
    ETIM 7.0 Key EC000608
    ETIM 8.0 Key EC000608
    ETIM 9.0 Key EC001694
    UNSPSC Key 44103124
