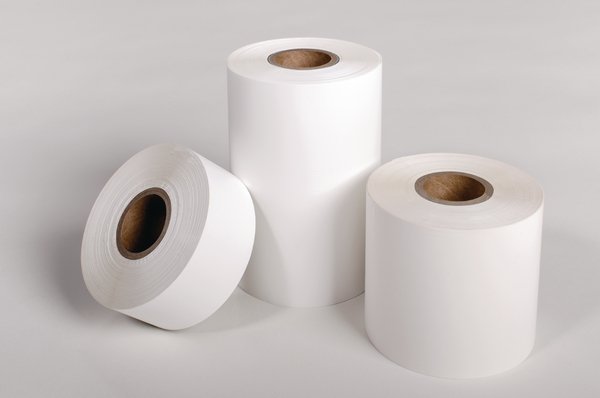

Thermal transfer ribbon, W=100.0mm, white, 300m
Art.-No. 556-00211 | TTRHTWH 100MM-PET-WH |  Details

Colour Thermal Transfer Ribbons.

    • Specially formulated ink for use on specialist high temperature materials
    • Excellent print resistance and print clarity
    • Withstands temperatures up to 225 °C
    • Two available widths 70 mm and 100 mm
    Add to watchlist
    Downloads Datasheet e-Learning
    Application The thermal transfer print technology is based on heating up certain dots in the print head. This transfers the ink very precisely from the ribbon onto the surface of the printed material.
    Colour White (WH)
    Material Polyester Film (PET)
    PART DESCRIPTION TTRHTWH 100MM-PET-WH
    Pack Cont. 1pc.
    Package Content packed in pcs.
    Product Family TTRHT: specially formulated ribbon for THTT, THTT DS, TAGHT
    Product Group Thermal transfer ribbons for high temperature heatshrink and Tiptags
    Short Description Thermal Transfer Ribbon 300m x 110 mm white
    Type TTRHTWH 100MM
    Variant Coloured ribbon
    Inside Ø (ID) 25.4mm
    Length (L) 300m
    Print Method thermal transfer print
    Recommended Material

    TAGPU
    Thickness (T) 9.8µm
    Thickness of Foil 5.7
    Weight/Unit 0.33kg
    Width (W) 100.0mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Melting Point starting from +90 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Country of Origin JP
    Customs Number 96121010
    Dimensions W x H x D 100.0 mm x
    GTIN-13 / EAN 4031026339023
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.065m
    Packaging 1 - Qty 1
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.00042m³
    Packaging 1 - Weight (kg) 0.4kg
    Packaging 1 - Width (m) 0.065m
    Packaging 3 - Height (m) 0.115m
    Packaging 3 - Length (m) 0.385m
    Packaging 3 - Qty 6
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0073m³
    Packaging 3 - Weight (kg) 2.675kg
    Packaging 3 - Width (m) 0.165m
    Packaging 4 - Height (m) 0.719m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 420
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 0.69m³
    Packaging 4 - Weight (kg) 208.25kg
    Packaging 4 - Width (m) 0.8m
    Reel Length 300m
    Reel Width 100mm
    ETIM 7.0 Key EC000608
    ETIM 8.0 Key EC000608
    ETIM 9.0 Key EC001694
    Thermal transfer printer TT431 Thermal transfer printer TT431

    Thermal transfer printer for industrial-grade printing

    Thermal Transfer Printer >
