Cable Organizer
Art.-No. 161-05050 | 3N-PA6-BK |  Details

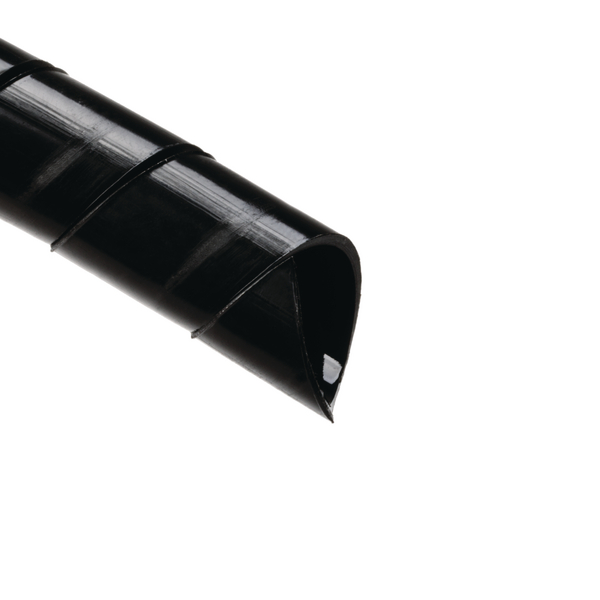

Spiralwrap protective sheathing is reusable and resistant to most chemicals.

    • Used for organising and protecting wires, cables and tubes
    • Available in a wide range of diameters and colours
    • Can be fitted onto cables, wires or tubes in situ
    • Wires can branch out at any point and in any direction
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6 (PA6)
    PART DESCRIPTION 3N-PA6-BK
    Pack Cont. 30.48m
    Package Content packed in reel
    Product Group Cable Organizer
    Type 3N
    Variant Spiral Binding
    Bundle Diameter max (metric) 102.0mm
    Bundle ∅ 9.52-102.0mm
    Bundle ∅ min. 9.52mm
    Diameter (D) 12.7mm
    Length (L) 30.48m
    Nominal ∅ 0.5"
    Nominal ∅ 12.7mm
    Pitch (P) 0.5"
    Pitch (P) 12.7mm
    Wall (WT) 0.035"
    Wall (WT) 0.89mm
    Weight/Unit 0.038kg
    ∅ D 0.5"
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +121 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E147924
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026339252
    Packaging 1 - Qty 30
    Packaging 1 - Type reel
    Packaging 1 - Weight (kg) 1.14kg
    Reel Length 30.48m
    Reel Length 100.0ft
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
    UNSPSC Key 39131604
