19/11/2024

For protecting optical fiber cable φ2mm
Art.-No. 161-50060 | HWPE2-PE-NA Details

  • Unlike spiral tubes, the Helawrap cable cover need not be wound around wires/cables, whereby significantly contributing to reducing the work process.
  • It is made of highly flexible polyethylene and has slits so that it can be easily bent and securely applied over curved wires and it can also be used for vibrating parts and moving parts.
  • HWPE2 can be easily applied (retrofitted) to existing optical fiber cables.
Application Helawrap is ideally suited for bundling and protecting cables for vibrating parts and moving parts. It can also be applied over existing cables in post-processes or during maintenance. It can be used for bundling and protecting cables in any situation for electrical equipment, communication equipment, production equipment, transport equipment, etc.

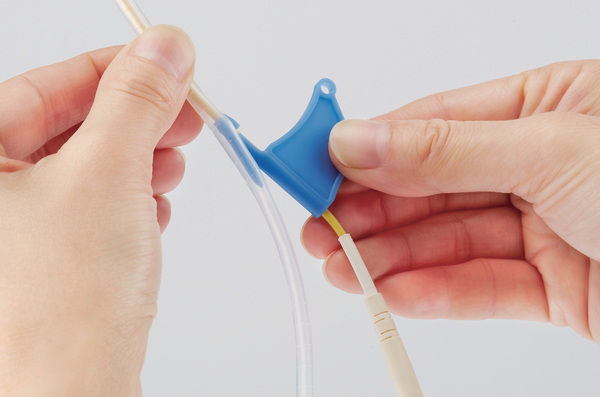

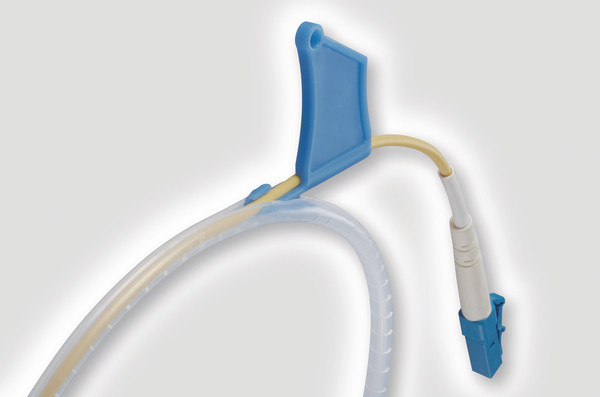

Application Method Place cables in applicator, then zip through cover sleeve.
Colour Natural (NA)
Description Easy to Apply, No Need to Wind
Material Polyethylene (PE)
PART DESCRIPTION HWPE2-PE-NA
Pack Cont. 50m
Package Content packed in box
Product Family Helawrap
Product Group For protecting optical fiber cable φ2mm
Type HWPE2
Variant Spiral Binding
Bundle Diameter max (metric) 2.0mm
Bundle ∅ 2.0mm
Diameter (D) 3.0mm
Length (L) 50m
Wall (WT) 0.6mm
Halogen-free Yes
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin JP
GTIN-13 / EAN 4944387119329
UNSPSC Key 39131604
