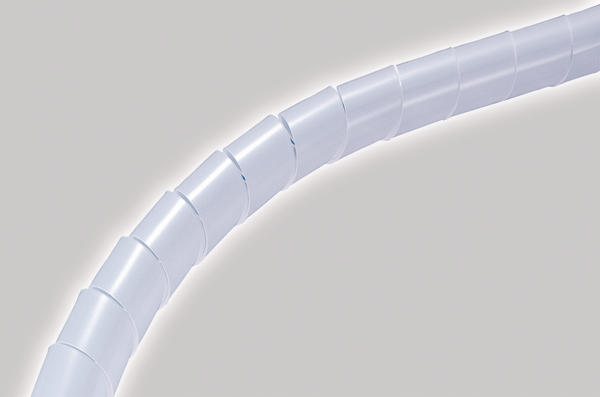

Spiral Binding
Art.-No. 161-06046 | TS-9N-PA6-NA Details

  • Organises and protects cables and hoses
  • Very good protection against abrasion
  • Suitable for retro-fitting
  • Cables branch out at any point
Application Spiral binding is used for cable harnesses in the automobile industry and for many demanding industrial applications.
Colour Natural (NA)
Material Polyamide 6 (PA6)
PART DESCRIPTION TS-9N-PA6-NA
Pack Cont. 50m
Package Content packed in reel
Product Family TS Series
Product Group Spiral Binding
Type TS-9N
Variant Spiral Binding
Diameter (D) 9.1mm
Length (L) 50m
Pitch (P) 12mm
Wall (WT) 0.7mm
∅ (D2) 10.5mm
Flammability UL 94 V2
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications ANSI/UL 746B, UL 1441, UL 224, UL 746A
UL OCD link Link
UL-File Number E304723
Country of Origin JP
GTIN-13 / EAN 4944387507522
ETIM 7.0 Key EC002604
ETIM 8.0 Key EC002604
ETIM 9.0 Key EC002604
