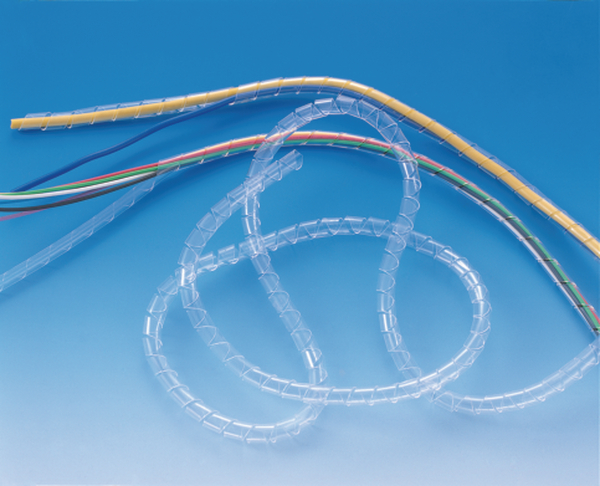

Spiral Binding
Art.-No. 161-06062 | TS-9N-PA6-CL |  Details

    • Organises and protects cables and hoses
    • Very good protection against abrasion
    • Suitable for retro-fitting
    • Cables branch out at any point
    Add to watchlist
    Downloads Datasheet
    Application Spiral binding is used for cable harnesses in the automobile industry and for many demanding industrial applications.
    Colour Transparent (CL)
    Material Polyamide 6 (PA6)
    PART DESCRIPTION TS-9N-PA6-CL
    Pack Cont. 50m
    Package Content packed in reel
    Product Family TS Series
    Product Group Spiral Binding
    Type TS-9N
    Variant Spiral Binding
    Diameter (D) 9.1mm
    Length (L) 50m
    Pitch (P) 12.0mm
    Wall (WT) 0.4mm
    ∅ (D2) 9.9mm
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387958157
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
    Show all
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.
