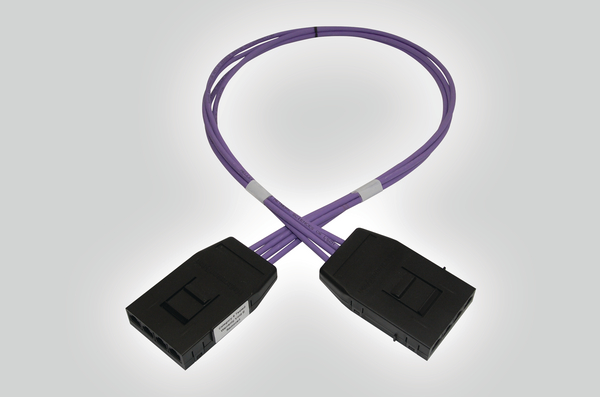

RapidNet 4 Port Category 6 Cassette to Cassette
Art.-No. 859-05415
| RN04UC6-CACAXX-10.0M
|
Details
- Exceeds Category 6 performance standards
- 24 Ports in 1U
- Factory pre-terminated and tested
- Reduce installation times by up to 85%
- Ideal solution for cabinet to cabinet installations
- Backward compatible with Category 5e, Category 5 and voice
More products in this product group:
| Application | The RapidNet CAT6 solutions are designed to support any voice and data cabling system that is capable of running over their respective systems and are backwards compatible with existing CAT5E, CAT5 and voice network infrastructure. RapidNet can reduce installation time by up to 85% and is designed to meet the exacting standards of mission critical installations where network down time and poor systems performance is not an option. The 4 core bundled cable have been specially designed to eliminate potential alien cross talk issues and uses a clear tape to reduce the bundle, ensuring a high quality, well managed installation. |
| Colour | Violet (VT) |
| Connector Type | RJ45 UTP |
| Description | The RapidNet 4 Port Cassette to Cassette is pre-terminated with 4 RJ45 ports in each cassette, with 6 cassettes fitting into a standard 4 Port RapidNet Patch Panel. A fully loaded panel presents 24 ports in 1U of space. The 4 Port Cassette to Cassette option is specifically designed for inter-cabinet installations that are common in data centres and comms rooms. The RapidNet 4 Port Cassette to Cassette solution also lends itself to the office and call centre environment with the 4 ports delivering voice and data to 2 desks per loom. |
| PART DESCRIPTION | RN04UC6-CACAXX-10.0M |
| Pack Cont. | 10.0m |
| Performance Category | Category 6 (Class E) |
| Port count | 4 |
| Product Family | Cassette to Cassette |
| Product Group | RapidNet 4 Port Category 6 |
| Short Description | RapidNet 4 Port Category 6 Cassette to Cassette |
| Technical Description | The RapidNet Cassette has been designed to provide a jack life of a minimum of 1000 insertions. The cassette is manufactured with a simple push clip mechanism and polarising clips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 6 standards. All RapidNet Category 6 cables are made with LS0H material, complying with the latest European fire ratings. NB. Part Number is given for a 10m loom as an example. Lengths are available from 5m to 90m. |
| Type | RN04UC6-CACAXX-10.0M |
