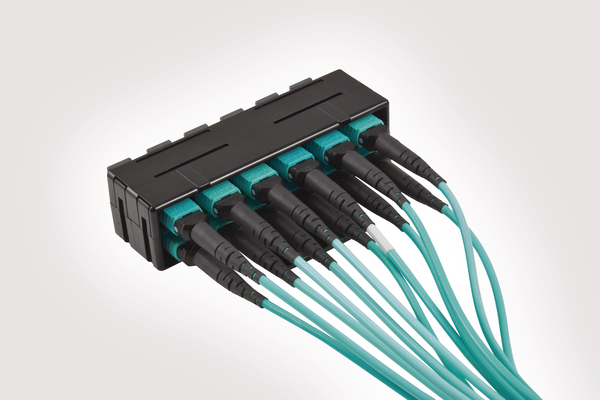

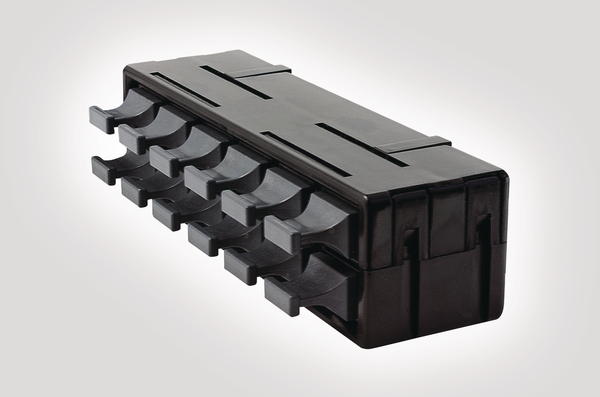

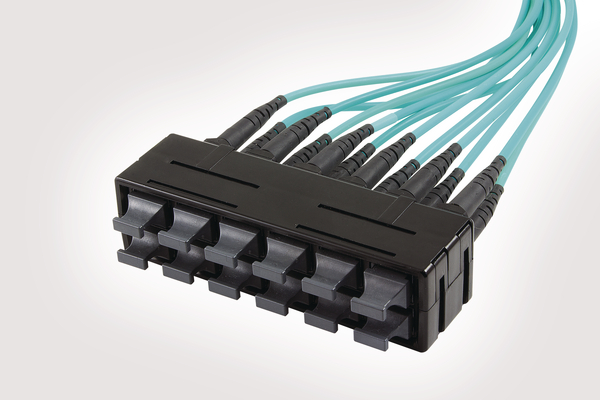

RapidNet 12 MTP Fibre Adaptors Mounting Module
Art.-No. 859-21911
| RNAFX12-MTPBK
|
Details
- Ideal for installations with limited access or restricted space
- Allows ruggedised fan outs to be presented in RapidNet Panels
- Fits into a standard RapidNet Panel
- Maximum of 1152 fibres in 1U of Space
More products in this product group:
Colour | Black (BK) |
Connector Type | MTP |
Description | The RapidNet Fibre Adaptor Mounting Module has been designed to allow the RapidNet solution to be used in areas with limited access or restricted space where a RapidNet Cassette cannot be used. The module is pre-loaded with adaptors which allows ruggedised fan outs to be presented in RapidNet panels and offers a maximum of 288 fibres in a single adaptor which equates to 1152 fibres in 1U of space. |
PART DESCRIPTION | RNAFX12-MTPBK |
Package Content packed in | bag |
Port count | 12 |
Product Family | 12 Port MTP Cassette |
Product Group | MTP Fibre Adaptor Mounting Module |
Short Description | RapidNet 12 MTP Fibre Adaptors Mounting Module |
Technical Description | The MTP Fibre Adaptor Mounting Module is supplied in a 12 hole configuration fitted with 12 x 24 fibre MTP adaptors. The MTP Fibre Adaptor Mounting Module is suitable for use with HellermannTyton Cassette to Fan Out, Fan Out to Fan Out and MTP Trunk/Backbone cables. All HellermannTyton fan out cables are supplied in a protective nylon sock to prevent damage during installation. The mounting module can be used in any RapidNet panel; however it is recommended that it is used with the Distribution Chassis or Rear Cable Management Panel as both panels offer rear cable management for the fan out cable, providing cable protection inside the rack or cabinet. All fibre adaptors and connectors comply with the latest published version of IEC874-14 ensuring interoperability. |
Type | RNAFX12-MTPBK |
