RapidNet Accessories
Art.-No. 859-30055 | RNGPPIUHD-HHSS | Details

Equivalent of 1U of fibre and 1U of copper in 1U of rack space
Maximum combined capacity of 24 copper ports and 288 fibre using RapidNet MTP VHD
Typical configuration 24 fibre and 24 copper ports
Label fields for identification of all ports

More products in this product group:

Colour	Black (BK)

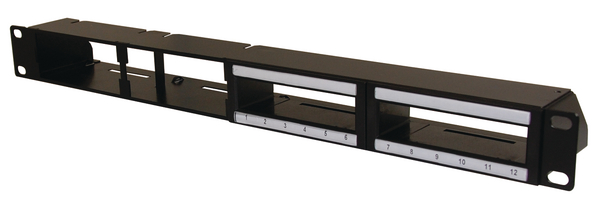

Description	The 1U RapidNet Hybrid Panel provides a simple 'Mix and Match' approach for both copper and fibre RapidNet. The panel offers capacity for the equivalent of 1U of fibre and 1U of copper in 1U of rack space, giving a saving of 1U of space each time the panel is used. The panels allow for a combination of 12 port high density copper RapidNet and 12 or 24 core fibre (direct terminated or MTP) or high density copper and RapidNet MTP VHD for up to 288 fibres. There are two configurations available.
Material	Steel (ST)
PART DESCRIPTION	RNGPPIUHD-HHSS
Pack Cont.	1pc.
Port	Unloaded
Product Family	1U Hybrid Copper/Fibre Panel
Product Group	RapidNet Accessories
Technical Description	The RapidNet Hybrid panel is manufactured from matt black powder coated mild steel to the standard 19" width. The panel is supplied with Rack Snap fixings as standard, panels can also be supplied with Cage Nuts, screw fixings or without fixings if required. The panel has dual labelling fields which can be customised through Alpha Label software at www.htdata.co.uk.
Type	RNGPPIUHD-HHSS
Variant	Accessory
