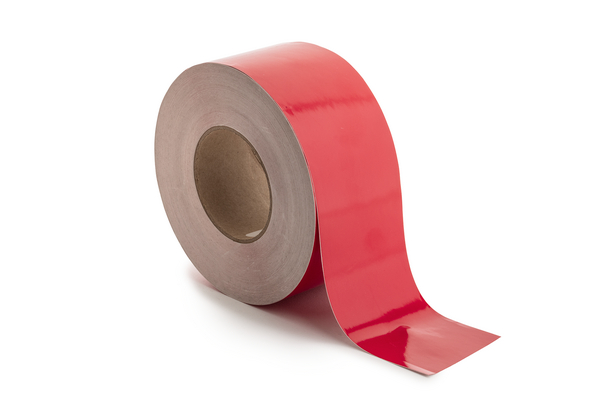

Label, red, thermal transfer print, 76.2mm, 30.48m
Art.-No. 558-00503 | HT3RDHB250-840/281-RD Details

  • Very clear and detailed image for use with graphics, single or sequential characters and especially barcodes
  • Smear-resistant, ultraviolet-resistant and chemical-resistant marking
Application The use of our specially formulated adhesive labels printed on thermal transfer printers give the highest quality print clarity. The range of materials are complemented by ribbons developed to suit the needs of most users. The production of labels is very simple. All that is needed is the required label to be selected from our industry leading software TagPrint Pro.
Colour Red (RD)
Key product features weather resistant, chemical resistance
Material Type 840/281, Polyester, UV-stabilised, clear polyester laminate (840/281)
Mech. material properties UV resistant for 5 years outdoor exposure
PART DESCRIPTION HT3RDHB250-840/281-RD
Pack Cont. 30.48m
Package Content packed in reel
Product Group Adhesive Labels
Type HT3RDHB250
Variant 3.2mil, 50lb bleached kraft paper
Length (L) 30.48m
Print Method thermal transfer print
VR 76.2mm
VR 3.0"
Width (W) 76.2mm
Width of LIner (WL) 3.0"
Width of Liner (WL) 76.2mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +150 °C
CE Certification No
CSA Certified No
Curing Temperature +10 °C
Halogen-free No
Operating Temperature -40 °C to +150 °C
ROHS compliant Yes
Specifications
Specifications ANSI Standard Z535.4, CSA 66956, IFC 2012, NEC2011, NEC2014, UL 969
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number MH14382, MH16736
UV-Stabilised Yes
Country of Origin US
GTIN-13 / EAN 4031026512327
Labels per Column 1
Labels per Row 1
Packaging 1 - Weight (kg) 0.544kg
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 55121606
