22/12/2024

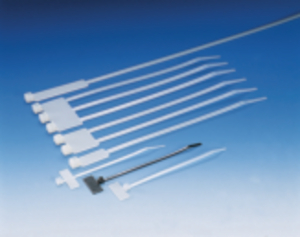

Identification cable tie, 100.0x25.0mm, ∅6.00-16.0mm, natural, 100pcs.
Art.-No. 137-00163 | IT18RPRN-PA66-NA |  Details

Identification ties and tags.

    • Large "flag area" at the head of the tie for printing needs
    • Print directly onto the flag (WxH) using state of the art thermal transfer direct print technology
    • For simple identification and securing of cable bundles in one step
    • Print jobs and graphics can be transmitted electronically
    Add to watchlist
    Downloads
    Application One of the major benefits is the ability to both secure and identify cable bundles at different times.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Natural (NA)
    Identification Plate Position attached to bundle
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION IT18RPRN-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family IT-Ties
    Product Group Identification ties and plates for marking cable bundles
    Recommended Labels TAG23-06TD1
    Tie Closure plastic pawl
    Type IT18RPRN
    Variant Inside Serrated
    Bundle Diameter max (metric) 16.0mm
    Bundle ∅ 6.00-16.0mm
    Bundle ∅ min. 6.00mm
    Height (H) 8.0mm
    Length (L) 100.0mm
    Min.Tensile Strength 80N
    Print Method thermal transfer print
    Weight/Unit 0.0013kg
    Width (W) 25.0mm
    Width (W2) 2.5mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-Recognized
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660343759
    Packaging 1 - Height (m) 0.025m
    Packaging 1 - Length (m) 0.305m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00116m³
    Packaging 1 - Weight (kg) 0.130001kg
    Packaging 1 - Width (m) 0.152m
    Packaging 3 - Height (m) 0.111m
    Packaging 3 - Length (m) 0.295m
    Packaging 3 - Qty 1000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0066m³
    Packaging 3 - Weight (kg) 1.8kg
    Packaging 3 - Width (m) 0.201m
    Packaging 4 - Height (m) 1.254m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 140000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.204m³
    Packaging 4 - Weight (kg) 273.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
