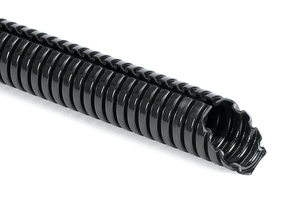

FCT23S-PA6-BK
Art.-No. 169-00078 | FCT23S-PA6-BK |  Details

    • Can be used to protect cables from crush damage
    • Lightweight and flexible
    Package size
    Add to watchlist
    Downloads Datasheet
    Application FCT convoluted tubing is typically used to route and protect wiring in control panels, cabinets, machines, cars and commericial vehicles.
    Colour Black (BK)
    Material Polyamide 6 (PA6)
    PART DESCRIPTION FCT23S-PA6-BK
    Pack Cont. 50m
    Package Content packed in coil
    Type FCT23S
    Diameter (D) 23.5mm
    Inside Ø (ID) 23.5mm
    Nominal ∅ 23.5mm
    Outside Ø (OD) 27.7mm
    Wall (WT) 0.55mm
    Weight/Unit 0.028kg
    ∅ D 0.93"
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +120 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39173200
    GTIN-13 / EAN 5022660005732
    Packaging 1 - Height (m) 0.25m
    Packaging 1 - Length (m) 0.53m
    Packaging 1 - Qty 50
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.07023m³
    Packaging 1 - Weight (kg) 1.4kg
    Packaging 1 - Width (m) 0.53m
    ETIM 7.0 Key EC001175
    ETIM 8.0 Key EC001175
    ETIM 9.0 Key EC001175
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
