FCT UV Stabilized Convoluted Tubing- Slit Version
Art.-No. 169-00166 | FCTUV13S-PA6UV-BK |  Details

HelaGuard HG-LW is very light and flexibel.

    • Will remain structurally sound in applications with high levels of UV exposure.
    • Ranging in size from 6.8mm to 23.5mm inside diameter
    • Halogen Free
    • Highly Flexible
    Add to watchlist
    Downloads Datasheet

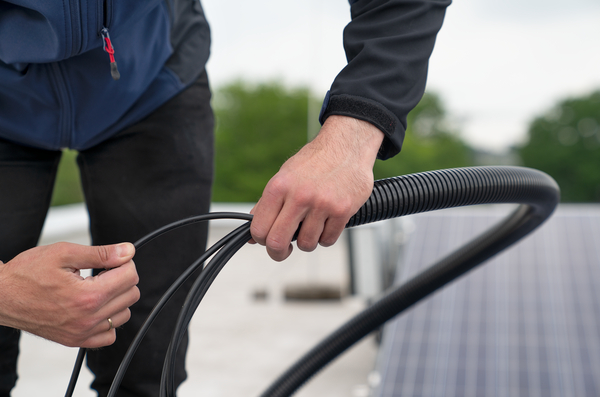

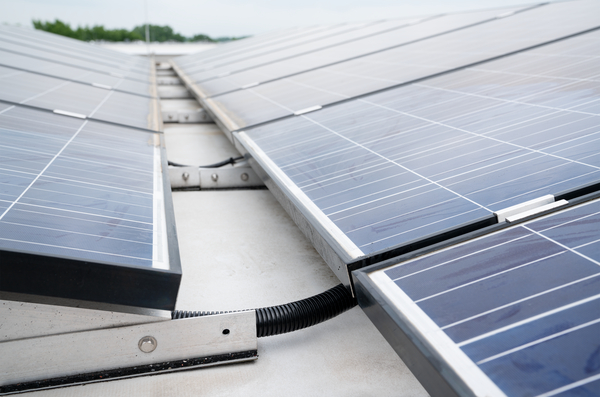

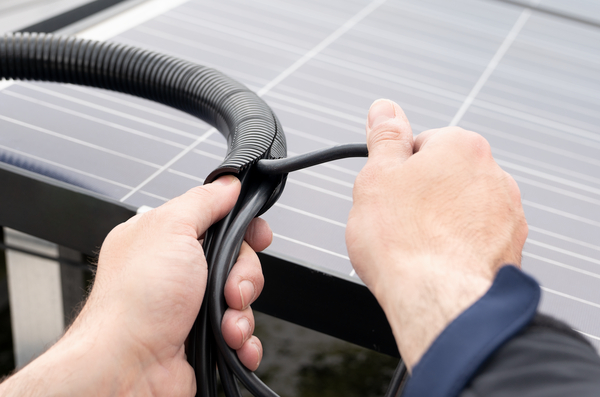

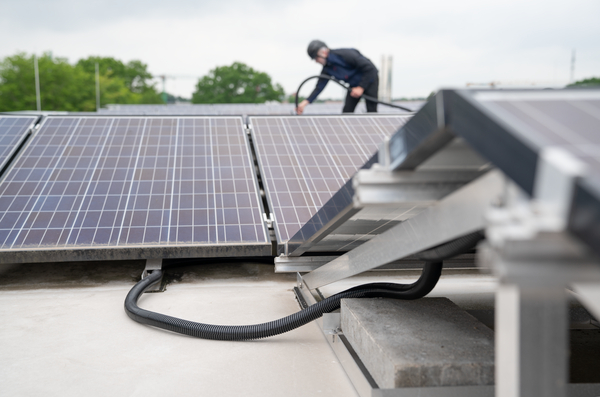

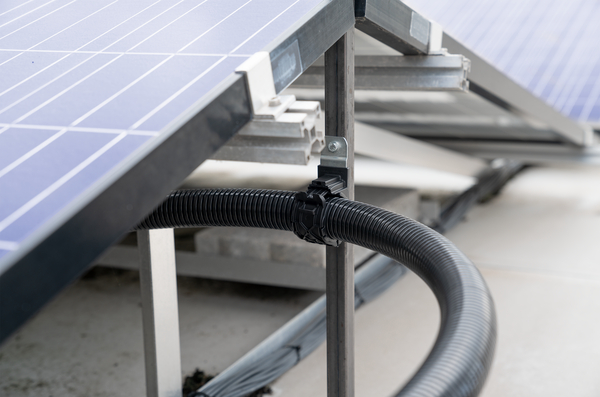

    Application Lightweight and flexible with added UV protection. To be used in applications with high levels of UV exposure and also to protect cables from crush damage.
    Colour Black (BK)
    Description Protective Tubing
    Material Polyamide 6, UV-stabilised (PA6UV)
    PART DESCRIPTION FCTUV13S-PA6UV-BK
    Pack Cont. 50m
    Package Content packed in coil
    Product Family UV stabilized corrugated tubing
    Product Group FCT UV Stabilized Convoluted Tubing- Slit Version
    Type FCTUV13S
    Inner Diameter D (Imperial) 0.476"
    Inside Ø (ID) 12.1mm
    Nominal ∅ 12.1mm
    Outside Ø (OD) 17.3mm
    Outside ∅ (OD) 0.68"
    Wall (WT) 0.45mm
    Wall (WT) 0.017"
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39173200
    GTIN-13 / EAN 5022660182136
    Packaging 1 - Height (m) 0.13m
    Packaging 1 - Length (m) 0.42m
    Packaging 1 - Qty 50
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.02293m³
    Packaging 1 - Weight (kg) 0.85kg
    Packaging 1 - Width (m) 0.42m
    Reel Length 50m
    ETIM 7.0 Key EC001175
    ETIM 8.0 Key EC001175
    ETIM 9.0 Key EC001175
    UNSPSC Key 39131601
