19/11/2024

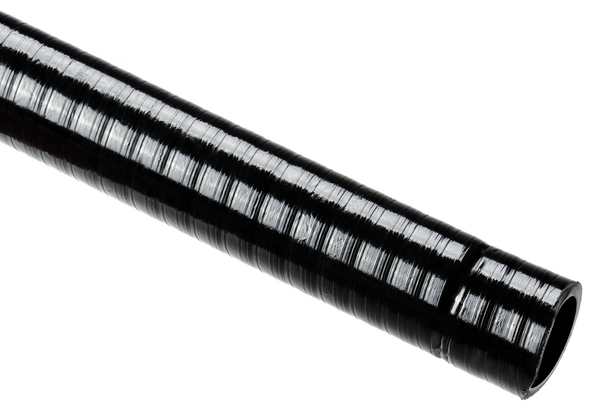

LPC1250-PVC-BK
Art.-No. 166-90251 | LPC1250-PVC-BK |  Details

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION LPC1250-PVC-BK
    Pack Cont. 30.5m
    Package Content packed in reel
    Type LPC1250
    Bending Radius min. (BR) 7.48"
    Bending Radius min. (R) 190mm
    Inner Diameter D (Imperial) 1.39"
    Inside Ø (ID) 35.4mm
    Length (L) 30.5m
    Nominal ∅ 1.25"
    Nominal ∅ 40mm
    Outside Ø (OD) 41.8mm
    Outside ∅ (OD) 1.65"
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free No
    Operating Temperature -5 °C to +70 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin GB
    GTIN-13 / EAN 4031026485089
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
