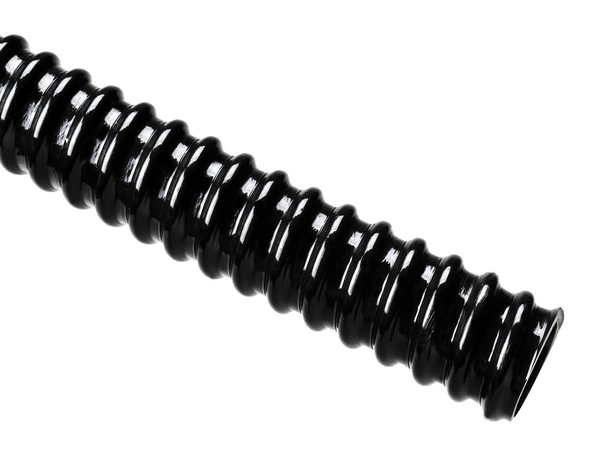

PSR0500-PVC-BK
Art.-No. 166-90221 | PSR0500-PVC-BK |  Details

Smooth inside bore protects wires and eases insertion of wire bundles.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION PSR0500-PVC-BK
    Pack Cont. 30.48m
    Package Content packed in reel
    Type PSR0500
    Bending Radius min. (BR) 1.38"
    Bending Radius min. (R) 35mm
    Inner Diameter D (Imperial) 0.63"
    Inside Ø (ID) 16mm
    Length (L) 30.5m
    Nominal ∅ 0.5"
    Nominal ∅ 20mm
    Outside Ø (OD) 21.0mm
    Outside ∅ (OD) 0.83"
    CE Certification No
    CSA Certified No
    Flammability EN IEC 61386
    Halogen-free No
    Operating Temperature -20 °C to +70 °C, (+80 °C, 200 h)
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E229161
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026464466
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
