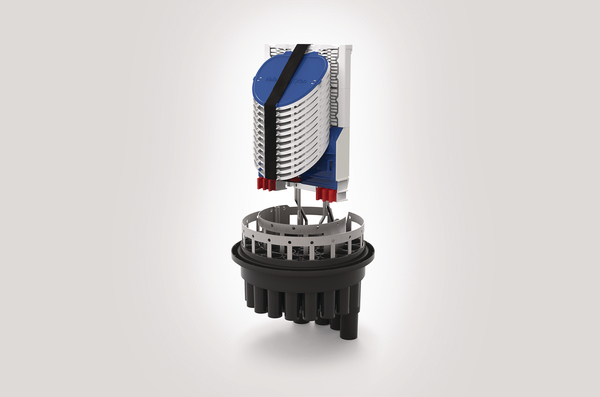

UFC IR B length closure with heatshrink base and 12 SE IR MKI trays with 3A splice bridges
Art.-No. 857-00539
| UFCIR-BXXHWX
|
Details
- Maximum 144 fibre splice capacity
- 28 round ports and 2 oval ports
- Positive fibre management to ensure consistent 30mm minimum fibre bend radius throughout
- Bi-directional fibre routing
- Supplied with 12 SE IR MKI trays with 3A splice bridges
- Maximum 12 splices per tray
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional pressure release valve
More products in this product group:
| Colour | Black (BK) |
| Content |
UFC IR Base Anchor Rings (Inner and Outer) B-Length Cover (Dome) Quick Release Clamp Sealing ‘O’ Ring Fibre Optic Routing Module Fibre Optic Storage Unit Fibre Optic Storage Unit Lid Fibre Slot Entry Module Fibre Slot Retaining Block 12 x SE-IR trays with 3A splice bridges Reusable Cable Ties Tray Lid Tray Tool Anchor Fixing Kit (3) Spiral Binding Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 – 12 Green Marker 1 – 12 |
| Cover Type | B |
| Material | Polypropylene (PP) |
| Method of Sealing | Cablelok, Heatshrink |
| PART DESCRIPTION | UFCIR-BXXHWX |
| Package Content packed in | box |
| Port | L, LM, T, S, B |
| Port count | 1, 1, 2, 10, 16 |
| Product Family | B Length Single Stack |
| Product Group | UFC Integrated Routing Closure |
| Qty Trays | 12 |
| Short Description | UFC IR B length closure with heatshrink base and 12 SE IR MKI trays with 3A splice bridges |
| Splice Capacity | 144 |
| Technical Description | The UFC Integrated Routing (IR) B Length Single Stack closure is available with a Cablelok (Polypropylene) or Heatshrink (Flame Retardant Polypropylene) base. The base configuration of 28 round ports and 2 oval ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 12 SE-IR MKI 3A splice trays. The position of the mounting system allows easy access for the routing of the fibre on to the trays. The trays and fibre optic routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide fibre elements in to the IR system, the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre slot retaining block and tray retaining clips are coloured red to aid in identification if they are dropped. |
| Type | UFCIR-BXXHWX |
| Type of Tray | Integrated Routing SE, 250µm |
| Variant | Outdoor FTTx Enclosures |
