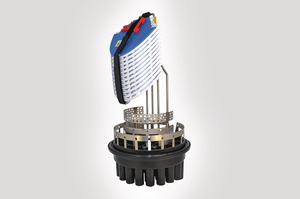

UFC BC length tubed closure with heatshrink base and 12 x SMF SE-A 3A splice trays
Art.-No. 857-00707
| UFCTB-BCXHH2X
|
Details
- Maximum 288 fibre splice capacity
- 28 round ports and 2 oval ports
- Supplied with 12 x SMF SE-A 3A Splice Trays
- Maximum 24 splices per tray
- Support ring allows manifolds to be secured within the closure
- Cablelok compatible for all port sizes
- Quick release cover
- Optional flash test valve and/or grounding feed-through
More products in this product group:
| Colour | Black (BK) |
| Content |
UFC Base Anchor Rings (Inner and Outer) BC-Length Cover (Dome) Quick Release Clamp Sealing ‘O’ Ring Tray Support Frame Anchor Fixing Kit (3) 12 x SMF SE-A 3A Splice Trays Tray Tool Hook and Loop Tray Securing Straps Transportation Tubing Tubefix – Tube to Tray Securing Blocks Hook and Loop Management Ties Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 – 12 Green Marker 1 – 12 |
| Cover Type | BC |
| Method of Sealing | Cablelok, Heatshrink |
| PART DESCRIPTION | UFCTB-BCXHH2X |
| Package Content packed in | kit |
| Port | L, LM, T, S, B |
| Port count | 1, 1, 2, 10, 16 |
| Product Family | UFC BC Length Single Stack |
| Product Group | UFC Tubed Closure |
| Qty Trays | 12 |
| Short Description | UFC BC length tubed closure with heatshrink base and 12 x SMF SE-A 3A splice trays |
| Splice Capacity | 288 |
| Technical Description | The UFC BC Length Single Stack closure is available with a Cablelok (Polypropylene) or Heatshrink (Flame Retardant Polypropylene) base which is fitted with a support ring which allows for fibre break-out manifolds to be secured within the closure. The base configuration of 28 round ports and 2 oval ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting and support system is manufactured from Grade 304 stainless steel and is supplied 12 x SMF SE-A trays giving a maximum of 288 fibre splices. The tubed closure and position of the mounting systems allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays. |
| Type | UFCTB-BCXHH2X |
| Type of Tray | Hellipse SMF SE-A |
