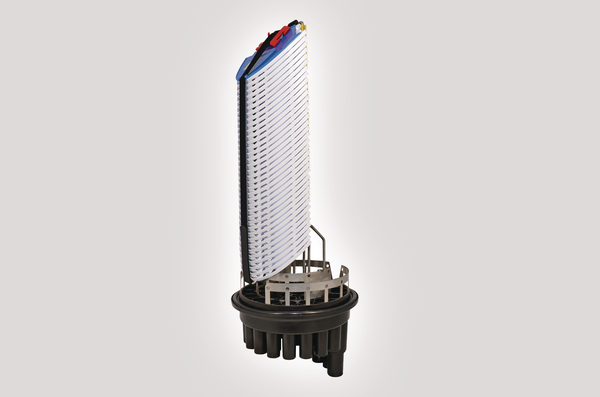

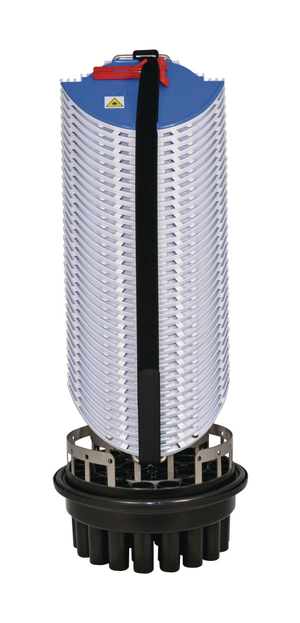

UFC C length tubed closure with heatshrink base and 36 x SMF SE-A 3A splice trays
Art.-No. 857-00737 | UFCTB-CXXHH6X |  Details

UFC C-Length Single Stack Closure

    • Maximum 864 fibre splice capacity
    • 28 round ports and 2 oval ports
    • Supplied with 36 x SMF SE-A 3A Splice Trays
    • Maximum 24 splices per tray
    • Cablelok compatible for all port sizes
    • Quick release cover
    • Optional flash test valve and/or grounding feed-through
    Show more
    Add to watchlist
    Colour Black (BK)
    Content UFC Base
    Anchor Rings (Inner and Outer)
    C-Length Cover (Dome)
    Quick Release Clamp
    Sealing ‘O’ Ring
    Tray Support Frame
    Anchor Fixing Kit (3)
    36 x SMF SE-A 3A Splice
    Tray Tool
    Hook and Loop Tray Securing Strap
    Transportation Tubing
    Tubefix – Tube to Tray Securing Blocks
    Isopropyl Alcohol Wipes
    Desiccant
    Installation Guide
    Marker Kit
    Red Marker 1 – 48
    Green Marker 1 – 48
    Cover Type C
    Method of Sealing Cablelok, Heatshrink
    PART DESCRIPTION UFCTB-CXXHH6X
    Package Content packed in kit
    Port L, LM, T, S, B
    Port count 1, 1, 2, 10, 16
    Product Family C Length Single Stack
    Product Group UFC Tubed Closure
    Qty Trays 36
    Short Description UFC C length tubed closure with heatshrink base and 36 x SMF SE-A 3A splice trays
    Splice Capacity 864
    Technical Description The UFC C Length Single Stack closure is available with a Cablelok (Polypropylene) or Heatshrink (Flame Retardant Polypropylene) base. The base configuration of 28 round ports and 2 oval ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting and support system is manufactured from Grade 304 stainless steel and is supplied 36 x SMF SE-A trays giving a maximum of 864 fibre splices. The tubed closure and position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
    Type UFCTB-CXXHH6X
    Type of Tray Hellipse SMF SE-A

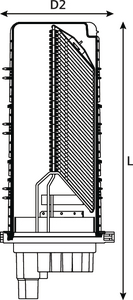

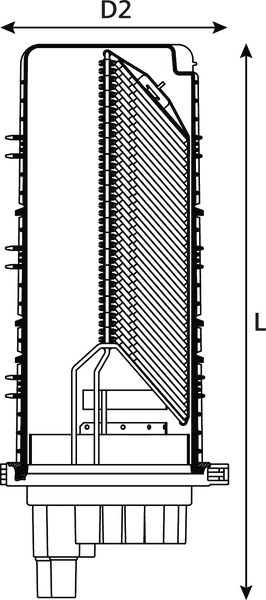

    D1 275mm
    D2 310mm
    Length 749mm
    Country of Origin GB
    GTIN-13 / EAN 5022660111730
    Packaging 1 - Height (m) 0.318m
    Packaging 1 - Length (m) 0.858m
    Packaging 1 - Qty 1
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.09031m³
    Packaging 1 - Weight (kg) 8.2kg
    Packaging 1 - Width (m) 0.331m
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
