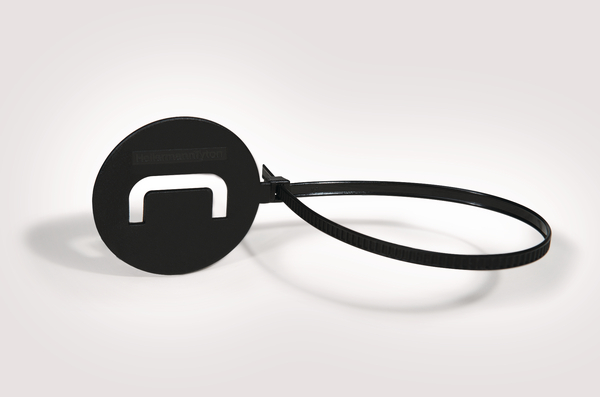

Identification cable tie, 290.0x5.0mm, ∅55.0mm, black, 80pcs.
Art.-No. 111-00992 | BRIDFC-PA66W-BK |  Details

Identification Tie BRIDF

    Add to watchlist
    Downloads
    Application Developed to identify electrical phases on poles and transformers. Produced in UV-resistant PA66, they can be used in both indoor and outdoor applications.
    Colour Black (BK)
    Key product features UV resistant
    Material Polyamide 6.6, UV-resistant (PA66W)
    PART DESCRIPTION BRIDFC-PA66W-BK
    Pack Cont. 80pcs.
    Package Content packed in bag
    Product Family BRIDF Series
    Product Group Identification Ties
    Tie Closure plastic pawl
    Type BRIDFC
    Variant Inside Serrated
    Bundle Diameter max (metric) 55.0mm
    Bundle ∅ 55.0mm

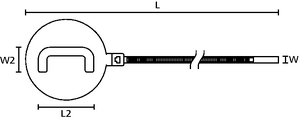

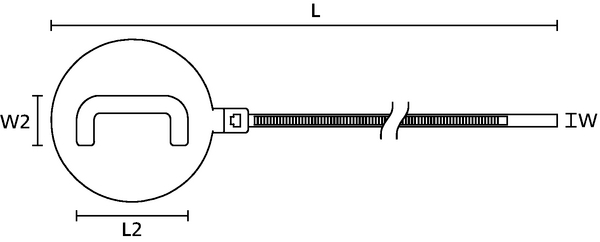

    Length (L) 290.0mm
    Length (L2) 50.0mm
    Min.Tensile Strength 215N
    Width (W) 5.0mm
    Width (W2) 50.0mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin BR
    GTIN-13 / EAN 7890176006455
    ETIM 7.0 Key EC001288
    ETIM 8.0 Key EC001288
    ETIM 9.0 Key EC001288
