19/12/2024

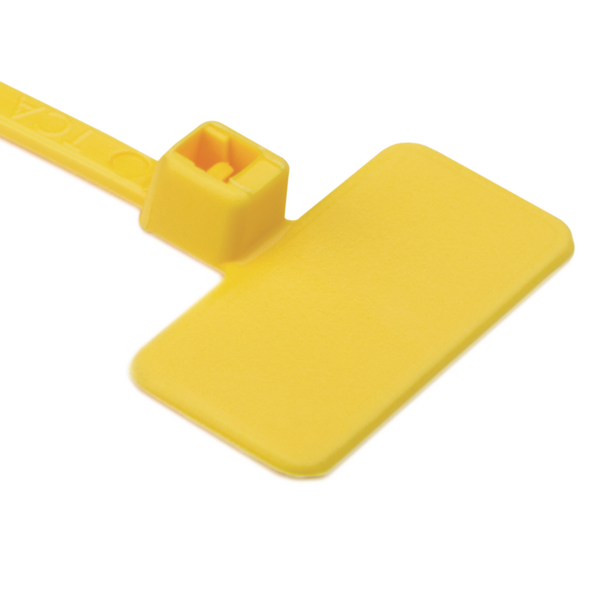

Identification cable tie, 110.0x20.5mm, ∅1.5-19.0mm, yellow, 200pcs.
Art.-No. 111-81913 | IT18FL-PA66-YE |  Details

Cable tie features an identification plate to easily identify bundles.

    • Identification ties made of Polyamide 6.6
    • For simple identification and securing of cable bundles in one step
    • Printable labels are available for a professional finish
    • Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
    Package size
    Add to watchlist
    Downloads
    Application One of the major benefits is the ability to both secure and identify cable bundles at different times.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Yellow (YE)
    Fixation Method None
    Identification Plate Position stands of bundle
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION IT18FL-PA66-YE
    Pack Cont. 200pcs.
    Package Content packed in bag
    Product Family IT Ties
    Product Group Identification ties and plates for marking cable bundles
    Recommended Labels TAG18-07TD1
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type IT18FL
    Variant Inside Serrated
    With label space Yes
    Bundle Diameter max (metric) 19.0mm
    Bundle ∅ 1.5-19.0mm
    Bundle ∅ min. 1.5mm
    Height (H) 9.0mm
    Length (L) 110.0mm
    Min.Tensile Strength 80N
    Outside ∅ max (OD max.) 19.00mm
    Outside ∅ max. 0.75"
    Outside ∅ min. 0.059"
    Outside ∅ min. (OD min.) 1.50mm
    Print Method manual marking
    Width (W) 20.5mm
    Width (W2) 2.5mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Type 11
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026415260
    Packaging 3 - Height (m) 0.20002499999999998m
    Packaging 3 - Length (m) 0.51117499999999995m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0318m³
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
