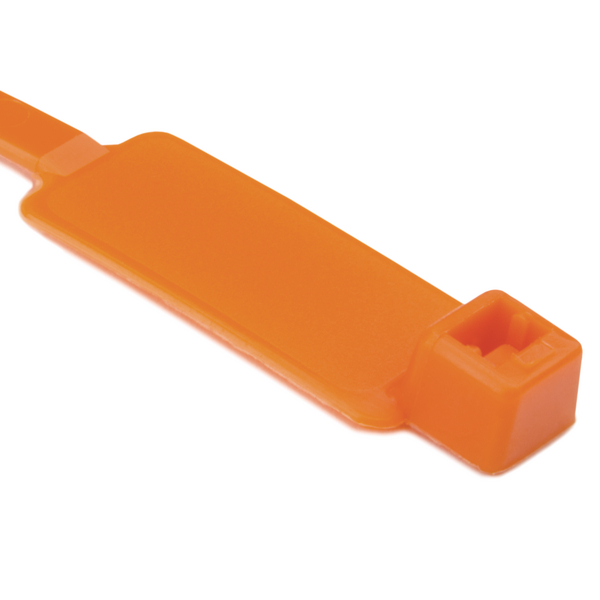

Identification cable tie, 203.2x28.0mm, ∅9.5-44.5mm, orange, 1000pcs.
Art.-No. 111-85023
| IT50R-PA66-OG
|
Details
- Identification ties made of Polyamide 6.6
- For simple identification and securing of cable bundles in one step
- Printable labels are available for a professional finish
- Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
![](https://www.hellermanntyton.com/shared/speclogos/99593_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/844489_All_Languages.jpg)
More products in this product group:
Application | One of the major benefits is the ability to both secure and identify cable bundles at different times. |
Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
Application Tool | ProCut 9 no battery, MK3PNSP2, MK3SP, MK7HT, MK7P, MK20, MK21, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9HT, EVO9i, EVO9iHT |
Colour | Orange (OG) |
Fixation Method | None |
Identification Plate Position | attached to bundle |
Material | Polyamide 6.6 (PA66) |
PART DESCRIPTION | IT50R-PA66-OG |
Pack Cont. | 1000pcs. |
Package Content packed in | bag |
Product Family | IT Ties |
Product Group | Identification ties and plates for marking cable bundles |
Recommended Labels | TAG23-10TD1 |
Releasable Closure (Yes/No) | No |
Tie Closure | plastic pawl |
Type | IT50R |
Variant | Inside Serrated |
With label space | Yes |
Bundle Diameter max (metric) | 44.5mm |
Bundle ∅ | 9.5-44.5mm |
Bundle ∅ min. | 9.5mm |
Height (H) | 12.9mm |
Length (L) | 203.2mm |
Min.Tensile Strength | 225N |
Outside ∅ max (OD max.) | 44.50mm |
Outside ∅ max. | 1.73" |
Outside ∅ min. | 0.37" |
Outside ∅ min. (OD min.) | 9.50mm |
Print Method | manual marking |
Width (W) | 28.0mm |
Width (W2) | 4.6mm |
CE Certification | Yes |
CSA Certified | No |
Flammability | UL 94 V2 |
Halogen-free | Yes |
Operating Temperature | -40 °C to +85 °C |
ROHS compliant | Yes |
Specifications |
![]() ![]() ![]() |
Specifications | CAGE Code 53421, UL-ZODZ2.E64139 |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | Yes |
UL Recognized (US and Canada) | Yes |
UL-File Number | E64139 |
US Gov. Designation | MS3368-1-3A, Class 1, SAE-AS33681 |
UV-Stabilised | No |
