19/11/2024

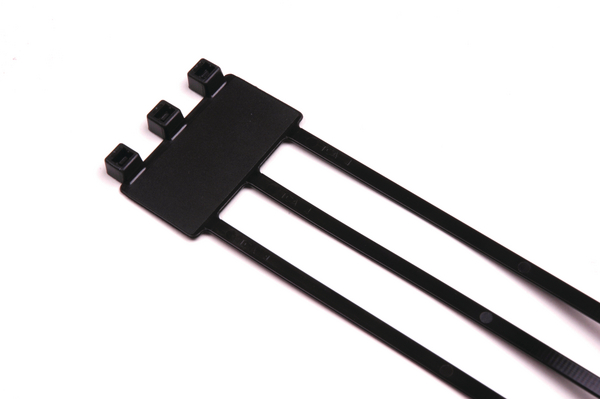

Identification cable tie, 203.2x46.0mm, ∅10.0-44.0mm, black, 50pcs.
Art.-No. 111-85100 | IT50RT-PA66-BK |  Details

Cable tie features an identification plate to easily identify bundles.

    • Identification ties made of Polyamide 6.6
    • For simple identification and securing of cable bundles in one step
    • Printable labels are available for a professional finish
    • Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
    Add to watchlist
    Downloads
    Application One of the major benefits is the ability to both secure and identify cable bundles at different times.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Black (BK)
    Fixation Method None
    Identification Plate Position attached to bundle
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION IT50RT-PA66-BK
    Pack Cont. 50pcs.
    Package Content packed in bag
    Product Family IT Ties
    Product Group Identification ties and plates for marking cable bundles
    Recommended Labels TAG43-21TD1
    Releasable Closure (Yes/No) No
    Short Description Identification Tie 203.2x46 mm black
    Tie Closure plastic pawl
    Type IT50RT
    Variant Inside Serrated
    With label space Yes
    Bundle Diameter max (metric) 44.0mm
    Bundle ∅ 10.0-44.0mm
    Bundle ∅ min. 10.0mm
    Height (H) 26.3mm
    Length (L) 203.2mm
    Min.Tensile Strength 225N
    Outside ∅ max (OD max.) 44.00mm
    Outside ∅ max. 1.73"
    Outside ∅ min. 0.393"
    Outside ∅ min. (OD min.) 10.00mm
    Print Method manual marking
    Width (W) 46.0mm
    Width (W2) 4.7mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Type 11
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026423784
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
