Marker sleeve, pre-printed "4", L=3.0mm, ⌀0.8mm, yellow, bag=1000pcs.
Art.-No. 602-00123 | NT8 Marker-PVCNR-YE |

This product is not available anymore.

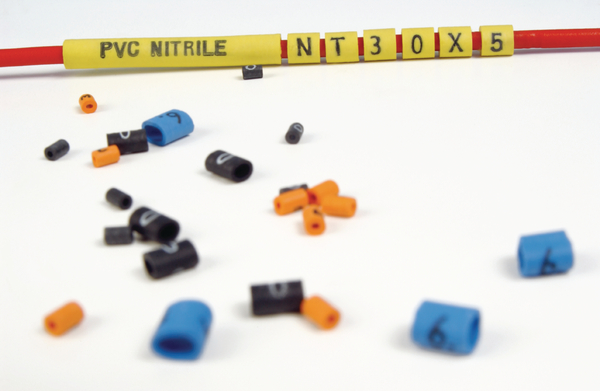

Application	The PVC nitrile markers (HT) are ideally suited to rigorous environments such as aerospace, mass transit, and defence markets. As the material is highly elastic, it’s original size can be expanded 500% on application, and 200% in continuous use. Markers are available in white or yellow material marked in black, and international resistor colour coding. Characters are 0-9, A-Z, and standard electrical symbols.
Application Method	Thread required markers onto the closed prongs. Expand the prongs and slide the wire into the marker opening. Close the prongs and hold the markers onto the wire and slide the tool away from the markers. It is advisable to use a little lubricant to help removal of tool from the wire due to the elastic tension inherent in these elastomeric markers.
Colour	Yellow (YE)
Colour of Print	Black (BK)
Marking Text	4
Material	Polyvinylchloride Nitrile (PVCNR)
PART DESCRIPTION	NT8 Marker-PVCNR-YE
Pack Cont.	1000pcs.
Package Content packed in	bag
Type	NT8 Marker

Operating Temperature	-65 °C to +120 °C, intermittent +150 °C
Pre-Printed	Yes
Specifications
Specifications	BS-3858 Type 4, BS-4G-198 Part 1 Type 2, DEF STAN 59-15 Type D3, IEC 304, IEC 757

Country of Origin
