16/07/2024

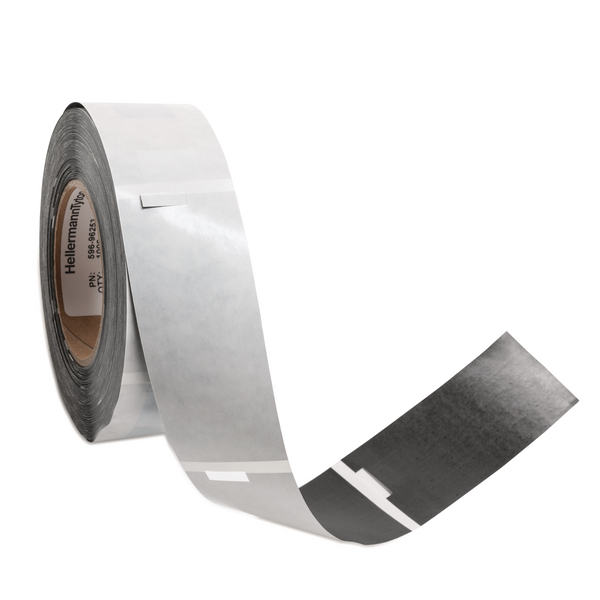

Label, self laminating, weather resistant/chemical resistance, white, thermal transfer print, 19.05x25.4mm, H2=120.6mm, 500pcs.
Art.-No. 596-96255 | PW.25W1P-PET-WH |  Details

Paint Mask Labels withstand chemicals and heat to survive the painting process.

    • Very clear and detailed image for use with graphics, single or sequential characters and especially barcodes
    • Smear-resistant, ultraviolet-resistant and chemical-resistant marking
    Add to watchlist
    Downloads
    Application The use of our specially formulated adhesive labels printed on thermal transfer printers give the highest quality print clarity. The range of materials are complemented by ribbons developed to suit the needs of most users. The production of labels is very simple. All that is needed is the required label to be selected from our industry leading software TagPrint Pro.
    Colour White (WH)
    Key product features weather resistant, chemical resistance
    Material Polyester Film (PET)
    PART DESCRIPTION PW.25W1P-PET-WH
    Pack Cont. 500pcs.
    Package Content packed in reel
    Product Group Adhesive Labels
    Type PW.25W1P
    Bundle Diameter max (metric) 9.52mm
    Bundle ∅ 3.17-9.52mm
    Bundle ∅ min. 3.17mm
    H printable 19.05mm
    Height (H) 19.05mm
    Height (H2) 120.6mm
    Print Method thermal transfer print
    Thickness (T) 64.0µm
    Width (W) 25.4mm
    Width of LIner (WL) 2.0"
    Width of Liner (WL) 50.8mm
    Adhesive Acrylic
    Adhesive Operating Temperature -40 °C to +150 °C
    CE Certification No
    CSA Certified No
    Curing Temperature +10 °C
    Halogen-free No
    Operating Temperature -40 °C to +149 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    US Gov. Designation MIL-STD-202, MIL-STD-810G
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026550084
    Labels per Column 1
    Labels per Row 1
    Packaging 1 - Weight (kg) 0.68kg
    UNSPSC Key 55121612
