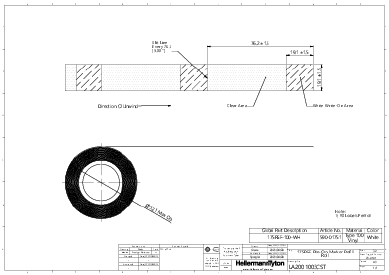

Cable label, self laminating, Refill pack, white, manual marking, 19.10x19.05mm, H2=76.20mm, 90pcs.
Art.-No. 590-01751 | RO175REF-100B-WH | Details

Provides simple and rapid identification for low volume installation and rework applications
Coloured text field gives a good contrast to the cable for extra clarity
RiteOn protective laminating foil ensures optimal protection against humidity, dirt, and mechanical abrasion
Using a suitable marker pen, write onto the text portion of the label displayed in the dispenser window
Label is ejected from the front of the dispenser and can be applied directly on to the cable

Application	RiteOn Starter Pack The ideal way of starting to use HellermannTyton’s excellent hand held labelling products. Refill Packs Refill packs are available with label areas in 6 different colours that will suit most applications. Refilling is simplicity itself into the RiteOn dispenser. Marking Pen Permanent marker pen for reliable labelling. The indelible ink will not wash off and dries very quickly. Available in pairs in either black or red.
Colour	White (WH)
Colour Marking Field	White (WH)
Description	Refill pack
Fixation Method	Pasting / Stick
Material	Type 100B, Vinyl, white transparent, self-laminating (100B)
PART DESCRIPTION	RO175REF-100B-WH
Pack Cont.	90pcs.
Package Content packed in	reel
Self adhesive (Yes/No)	Yes
Type	RO175REF
Variant	Roller form
With label space	Yes

Adhesive	Acrylic
Adhesive Operating Temperature	-40 °C to +80 °C
CE Certification	No
CSA Certified	No
Curing Temperature	from +10 °C
Halogen-free	No
Operating Temperature	-40 °C to +80 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	Yes
UL Recognized (US and Canada)	Yes
UL-File Number	MH18396
UV-Stabilised	No
