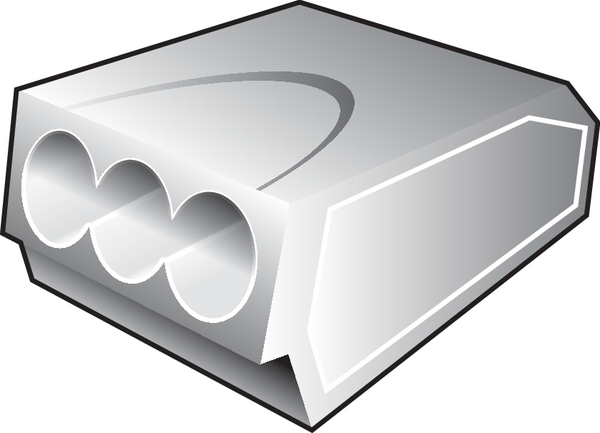

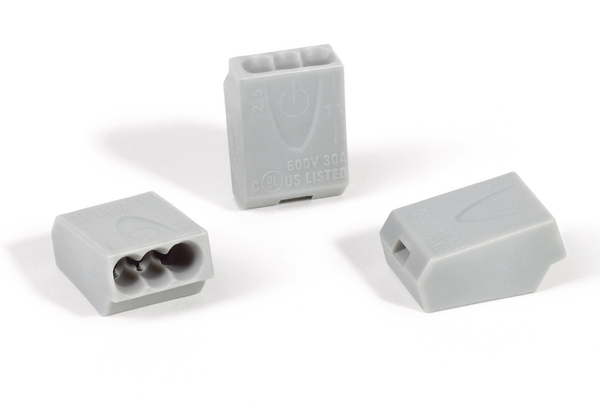

Push-in wire connector, 3 conductors, 1.0 - 2.5 mm² solid, grey, 75pcs.
Art.-No. 148-90007
| HECE-3-PA66-GY
|
Details
- Fast, easy, reliable push-in wire connectors for solid wires
- For connection and distribution of conductors in electrical housing
- Variety of input poles for flexible application
- Wire diameters from 1.0 up to 2.5 mm²
- Smaller diameters from 0.5 up to 1.5 mm² possible with HECE 1.5

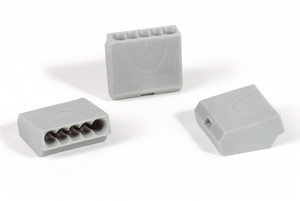

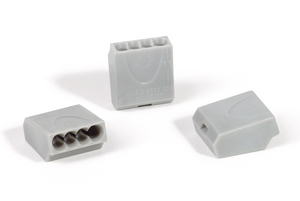

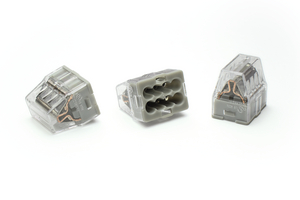

More products in this product group:
| Application | The compact connector size fits perfect in tight spaces and it can generally be used in all kinds of junction boxes either on-wall or flush-mounted. HelaCon Easy is used to connect solid wires in the field of electrical installation. |
| Cable ∅ max | 1.78mm |
| Cable ∅ min | 1.12mm |
| Colour | Grey (GY) |
| Material | Polyamide 6.6 (PA66) |
| Number of Conductors | 3 |
| PART DESCRIPTION | HECE-3-PA66-GY |
| Pack Cont. | 75pcs. |
| Package Content packed in | box |
| Product Family | HelaCon Easy |
| Product Group | Connectors - For Solid Wires |
| Short Description | Push-in Wire Connector 3-pole grey 2.5mm² |
| Suitable for flexible core (Yes/No) | No |
| Suitable for multi wire core (Yes/No) | No |
| Suitable for solid core (Yes/No) | Yes |
| Type | HECE-3 |
Download
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -30 °C to +110 °C (VDE), -30 °C to +105 °C (cULus) |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | 60998-1:2004, ANSI/UL 486-A, ANSI/UL 486-B, ANSI/UL 486-C, CEBEC, DIN EN 60998-2-2:2005-03, EN 60998-2-2:2004, ENEC, FIMKO |
| UL Listed (US and Canada) | Yes |
| UL OCD link | Link |
| UL-File Number | E316080 |
|
|
|
| Country of Origin | CN |
| Customs Number | 85369010 |
| GTIN-13 / EAN | 4031026284798 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.05m |
| Packaging 1 - Qty | 75 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00026m³ |
| Packaging 1 - Weight (kg) | 0.17kg |
| Packaging 1 - Width (m) | 0.075m |
| Packaging 3 - Height (m) | 0.32m |
| Packaging 3 - Length (m) | 0.37m |
| Packaging 3 - Qty | 6750 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.029m³ |
| Packaging 3 - Weight (kg) | 15.823kg |
| Packaging 3 - Width (m) | 0.245m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 162000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 400.74kg |
| Packaging 4 - Width (m) | 0.8m |
