Acessory of wiring duct raceway system in self-extinguishing ABS
Art.-No. 250-10029 | AE2012-ABS-BK |  Details

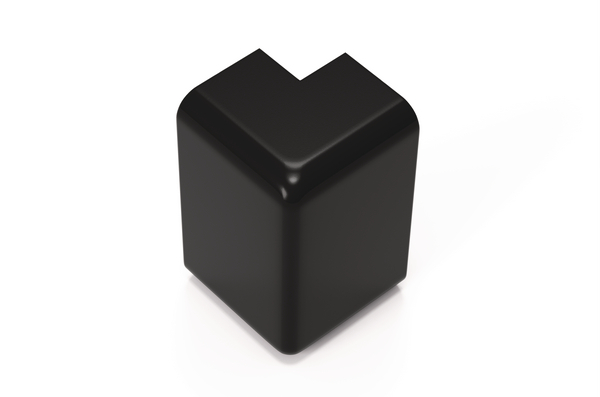

External Elbow

    • Ideal for renovations, retrofits and new buildings;
    • Easy to sanitize, allowing its use in hospitals, clinics and laboratories;
    • Does not oxide, indicated for use in properties located in areas of sea air.
    Add to watchlist
    Application The external elbow is used at external angles of walls and surfaces whose cabling has being installed.
    Colour Black (BK)
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION AE2012-ABS-BK
    Pack Cont. 25
    Package Content packed in bag
    Product Family Minicanal System in ABS
    Product Group Acessory of wiring duct raceway system in self-extinguishing ABS
    Type AE2012
    Height (H) 10.6mm
    Length (L) 31.1mm
    Wall (WT) 1.3mm
    Width (W) 23mm
    Flammability UL 94 V0
    Operating Temperature -5 °C to +60 °C
    ROHS compliant No
    Country of Origin BR
    Customs Number 3925902000
    GTIN-13 / EAN 7890176098139
    ETIM 7.0 Key EC000059
    ETIM 8.0 Key EC000059
    ETIM 9.0 Key EC000059
    UNSPSC Key 39131712
    Show all

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
