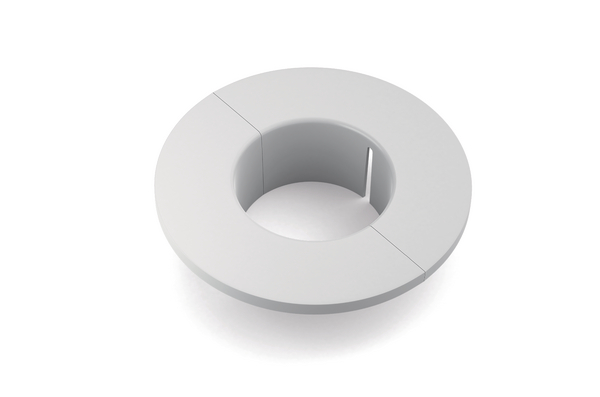

Accessorie of air conditioning duct system in self-extinguishing rigid PVC
Art.-No. 250-13003 | AFAC6050-ABS-WH Details

  • Ideal for protection and aesthetics in the installation of air conditioning;
  • made with thermoplastic and self-extinguishing material;
  • Impact resistant;
  • Meets NR18 - lower cost per installed point;
  • Reduced installation time;
  • Allows the installation of air conditioning in various environments;
  • Available in three wiring ducts models.
Show more
Application The accessories for HelaClima wiring ducts facilitate the installation, eliminating cutout of the wiring ducts. They are used for protection and aesthetics in the installation of air conditioning system such as pipes, thermal insulation, drain and electric cables. They are available in three different sizes: 30x30mm, 60x50mm and 80x80mm.
Colour White (WH)
Description Hole finishing.
Material Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION AFAC6050-ABS-WH
Pack Cont. 1
Package Content packed in bag
Product Family HelaClima system in white ABS
Product Group Accessorie of air conditioning duct system in self-extinguishing rigid PVC
Type AFAC6050
Inside Ø (ID) 60.0mm
Outside Ø (OD) 121.0mm
Wall (WT) 1.7mm
Width (W) 35.5mm
Width (W2) 6.2mm
Flammability UL 94 V0
ROHS compliant No
Country of Origin BR
Customs Number 3925902000
GTIN-13 / EAN 7890176097644
ETIM 7.0 Key EC000059
ETIM 8.0 Key EC000059
ETIM 9.0 Key EC000059
UNSPSC Key 39131712
