24/12/2024

Acessory of wiring duct raceway system in self-extinguishing ABS
Art.-No. 250-10036 | CP5020-ABS-GY Details

  • Ideal for renovations, retrofits and new buildings;
  • Easy to sanitize, allowing its use in hospitals, clinics and laboratories;
  • Does not oxide, indicated for use in properties located in areas of sea air.

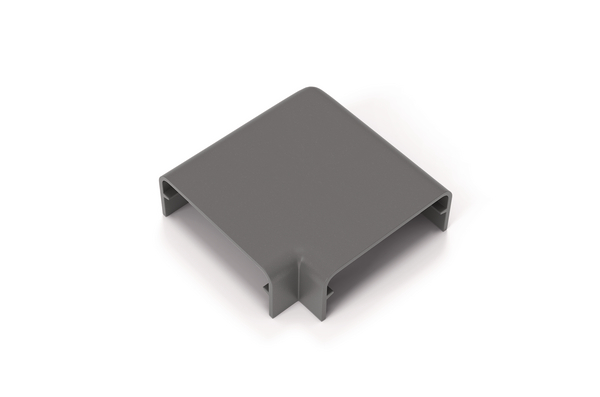

Application The 90° flat angle elbow is used for cable routing in curve.
Colour Grey (GY)
Material Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION CP5020-ABS-GY
Pack Cont. 25
Package Content packed in bag
Product Family Minicanal System in ABS
Product Group Acessory of wiring duct raceway system in self-extinguishing ABS
Type CP5020
Height (H) 21.5mm
Length (L) 67mm
Wall (WT) 1.8mm
Width (W) 54.5mm
Flammability UL 94 V0
Operating Temperature -5 °C to +60 °C
ROHS compliant No
Country of Origin BR
Customs Number 3925902000
GTIN-13 / EAN 7890176097965
ETIM 7.0 Key EC000059
ETIM 8.0 Key EC000059
ETIM 9.0 Key EC000059
UNSPSC Key 39131712
