Acessory of wiring duct raceway system in self-extinguishing ABS
Art.-No. 250-10037 | CT5020-ABS-GY Details

  • Ideal for renovations, retrofits and new buildings;
  • Easy to sanitize, allowing its use in hospitals, clinics and laboratories;
  • Does not oxide, indicated for use in properties located in areas of sea air.

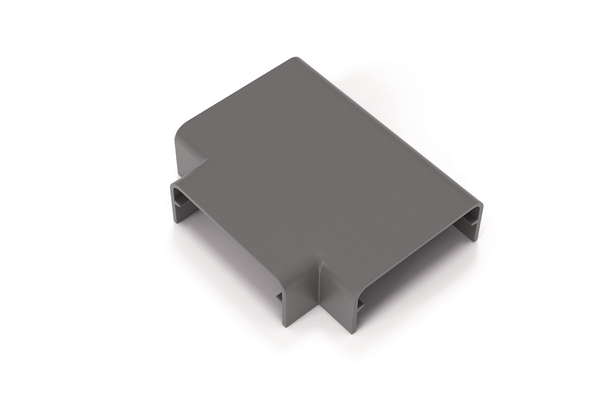

Application The flat "T" joint is used for cable branches even at central points of the installation.
Colour Grey (GY)
Material Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION CT5020-ABS-GY
Pack Cont. 25
Package Content packed in bag
Product Family Minicanal System in ABS
Product Group Acessory of wiring duct raceway system in self-extinguishing ABS
Type CT5020
Height (H) 21.5mm
Length (L) 84.5mm
Length (L3) 54.5mm
Wall (WT) 1.8mm
Width (W) 69.5mm
Flammability UL 94 V0
Operating Temperature -5 °C to +60 °C
ROHS compliant No
Country of Origin BR
Customs Number 3925902000
GTIN-13 / EAN 7890176097972
ETIM 7.0 Key EC000059
ETIM 8.0 Key EC000059
ETIM 9.0 Key EC000059
UNSPSC Key 39131712
