19/11/2024

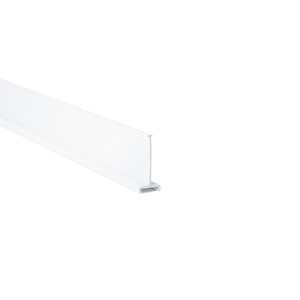

Accessory, white, 36.58m (DV1)
Art.-No. 181-00305 | DV1-PVC-WH |  Details

Dividers have continuous score lines for smooth breakouts.

    • Dividers have continuous score lines for smooth breakouts.
    • Top of the dividers has a double-sided lip which reduces the likelihood of wires falling out during installation.
    Add to watchlist
    Downloads
    Colour White (WH)
    Description Solid-Wall Dividers can be securely mounted into all types of HellermannTyton wiring duct to separate high and low voltage, thus reducing interference. The dividers simply snap or slide into the specially designed mount, instantly creating multiple channels within a single duct size.
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION DV1-PVC-WH
    Pack Cont. 36.58m
    Package Content packed in carton
    Product Family Wiring Duct Dividers
    Product Group Duct Dividers
    Type DV1
    Height (H) 22.90mm
    Height (H2) 5.60mm
    Length (L) 1.83m
    Thickness (T) 1.27mm
    Width (W) 19.05mm
    CE Certification No
    CSA Certified No
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Specifications EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin US
    Customs Number 3925902000
    GTIN-13 / EAN 4031026724331
    UNSPSC Key 39131713
    Show all

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
