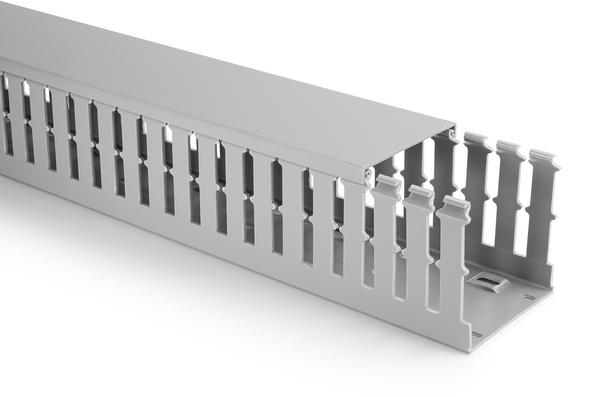

Wiring duct 80x100 mm, 2000 mm, PVC, grey
Art.-No. 181-10329 | HTWD-PW-80X100-PVC-GY |  Details

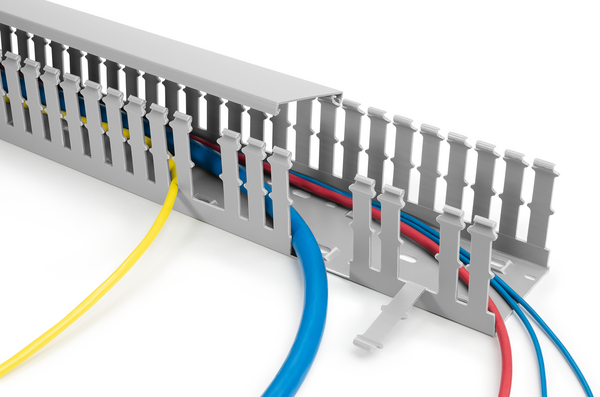

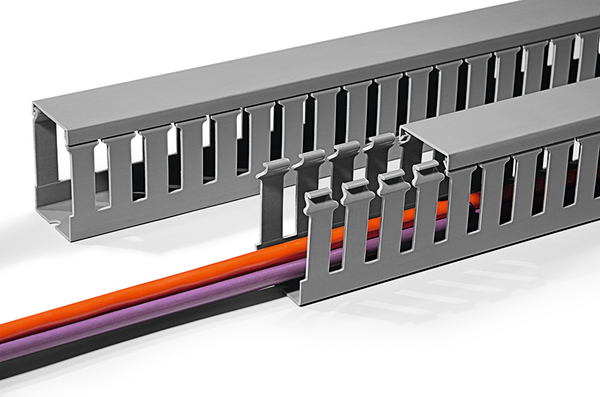

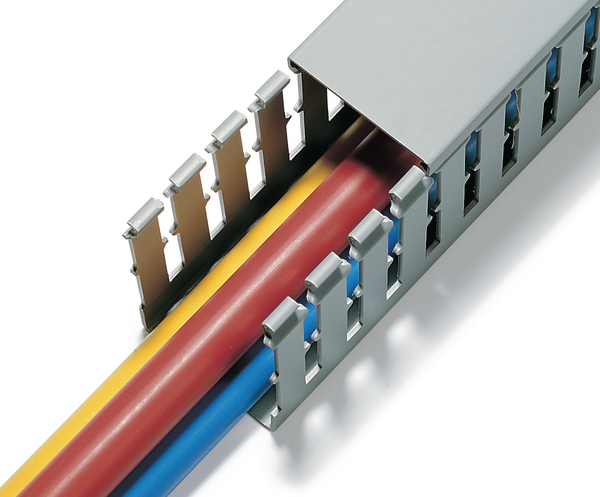

HelaDuct HTWD-PW - wide finger wiring duct.

    • Wide slots suitable for large-diameter wires
    • Wide fingers provide additional wire support
    • Smooth, burr-free edges protect installers from injury and wires from damage
    • Fingers can be removed with no sharp edges at pre-notched snap-off points
    • Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges
    • Raised mounting points for easily, quickly and securely fastening wire retainers and other accessories prior to cabling
    • Wire retainers and accessories leave no protruding parts below surface of duct
    • Duct covers are easy to mount and remove, yet hold securely even in a vertical position and under vibration
    • Cover is flush with side of duct, allowing for tight, contiguous placement of ducts
    • Additional retainer nub on fingers on ducts height 80 and above to prevent cables from slipping

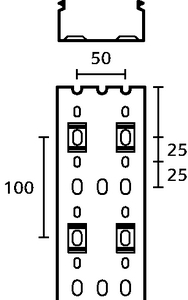

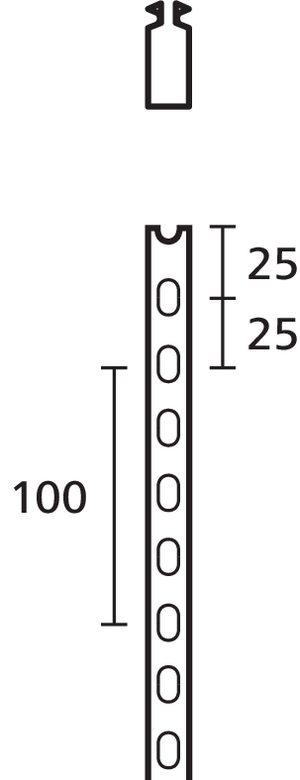

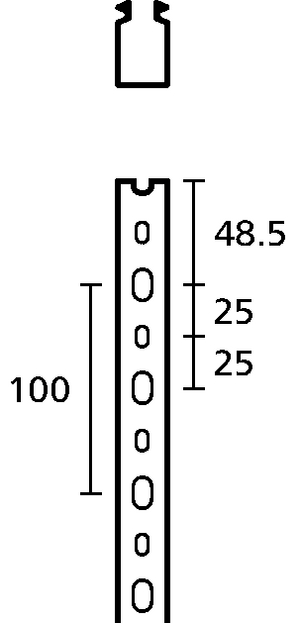

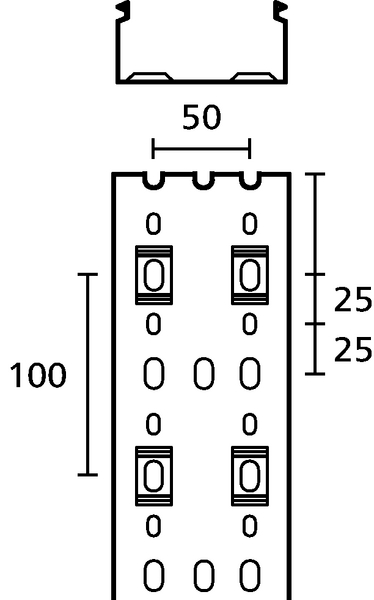

    • Base perforation according to DIN EN 50085
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application HelaDuct HTWD-PW wiring ducts are used to route and protect wires in control panels and switching systems.
    Colour Grey (GY)
    Current leak stable Yes/No Yes
    Fixation Method Screw Mounting
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION HTWD-PW-80X100-PVC-GY
    Pack Cont. 8m
    Package Content packed in metre
    Product Family HelaDuct HTWD-PW for large-diameter wires (metric sizes)
    Product Group Rigid PVC wiring ducts
    Short Description Wiring duct 80x100 mm, 2000 mm, PVC, grey
    Type HTWD-PW-80X100
    Type of side wall Slotted

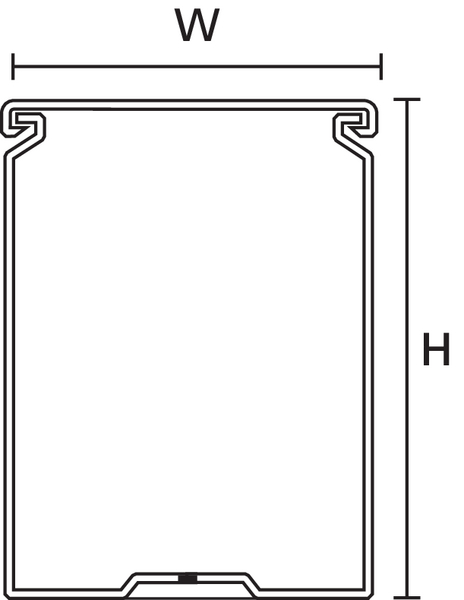

    Height (H) 100mm
    Length (L) 2m
    Suitable for cross section 6738mm²
    Weight/Unit 0.966kg
    Width (W) 80mm

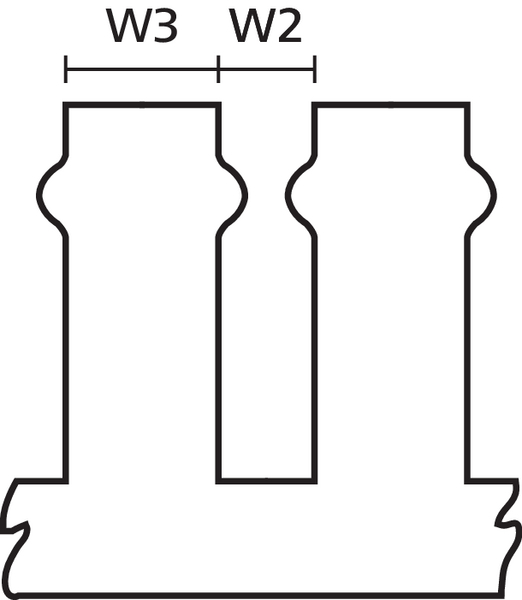

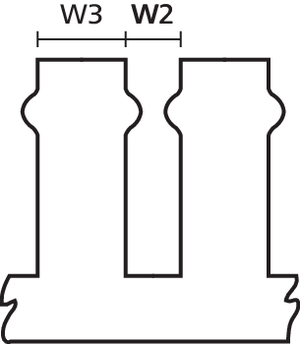

    Width (W2) 8mm
    Width (W3) 12mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Operating Temperature -5 °C to +65 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    Country of Origin IT
    Customs Number 39259020
    GTIN-13 / EAN 4031026567204
    Packaging 3 - Height (m) 0.139m
    Packaging 3 - Length (m) 2.03m
    Packaging 3 - Qty 8
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0556m³
    Packaging 3 - Weight (kg) 8.496kg
    Packaging 3 - Width (m) 0.197m
    Packaging 4 - Height (m) 1.117m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 224
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.072m³
    Packaging 4 - Weight (kg) 258.888kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000012
    ETIM 8.0 Key EC000012
    ETIM 9.0 Key EC000012
    UNSPSC Key 39131712
    Show all
    Show all

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
