26/12/2024

MDHDW3-PVC-GY
Art.-No. 181-00783 | MDHDW3-PVC-GY |  Details

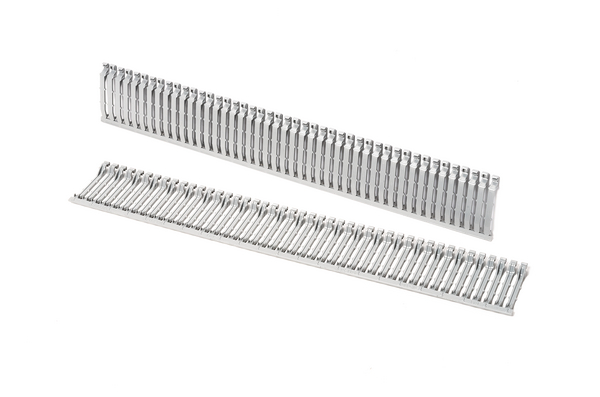

SmartDuct sidewalls are produced with an injection molding grade PVC material that ensures a consistently smooth surface and eliminates any rough edges.

    Add to watchlist
    Downloads
    Colour Grey (GY)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION MDHDW3-PVC-GY
    Pack Cont. 20pcs.
    Package Content packed in carton
    Type MDHDW3
    Height (H) 71.9mm
    Height (H2) 65.6mm
    Height (H3) 77.5mm
    Length (L) 457.0mm
    Width (W3) 1.93mm
    Width (W4) 10.2mm
    Width (W4) 0.4"
    Width (W5) 0.324"
    Width (W5) 8.23mm
    CE Certification No
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    Country of Origin US
    GTIN-13 / EAN 4031026603353
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Width (m) 0.396875m
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
