Wiring duct raceway system in self-extinguishing ABS
Art.-No. 250-00300 | PD1M-ABS-BK |  Details

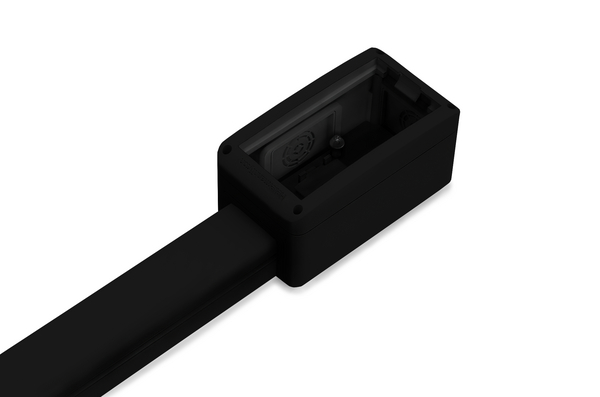

PD1M surface box.

    • Connection box for use with HellermannTyton faceplates;
    • Internal spacer for power, data and other cables;
    • Ideal for installations close to their loads;
    • Compatible with HellermannTyton Minicanal wiring ducts and side entry conduits;
    • Perforated base for cable entry and housing for screws apllication in different positions;
    • Internal grounding point.
    Show more
    Add to watchlist
    Application The PD1M, PD2M and PD3M surface box are suitable for use with HellermannTyton faceplates. The models for use with 2 or 3 faceplates have internal spacer for power, data and other cables. It already comes equipped with rail up to fit 2 DIN modules from any manufacturer, for example: ciurcuite breakers, IDRS, DDRS, disconnectors, luminaires, input relays, among others. Ideal for installations close to your loads. They feature input for 14x7mm, 18x21mm, 20x10mm, 27x30mm, 40x16mm, 40x30mm, 50x20mm and 3/4", 1" tubes, and have holes in the base for quick wall installation.
    Colour Black (BK)
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION PD1M-ABS-BK
    Pack Cont. 1
    Package Content packed in bag
    Product Family Surface box in white ABS
    Product Group Wiring duct raceway system in self-extinguishing ABS
    Type PD1M
    Height (H) 65.0mm
    Length (L) 132.0mm
    Width (W) 71.0mm
    Flammability UL 94 V0
    ROHS compliant No
    Country of Origin BR
    Customs Number 3925902000
    GTIN-13 / EAN 7890176098900
    ETIM 7.0 Key EC000059
    ETIM 8.0 Key EC000059
    ETIM 9.0 Key EC000059
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
