22/12/2024

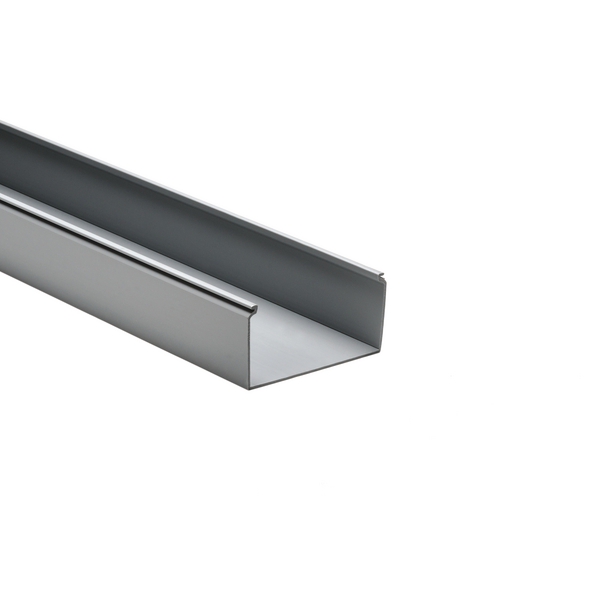

SD4X2-PVC-GY
Art.-No. 181-00185 | SD4X2-PVC-GY |  Details

Solid wall construction provides excellent coverage to keep wires clean.

    Package size
    You have selected a different package size. The displayed product may differ slightly from the original product. You can see possible differences here in comparison.
    Add to watchlist
    Downloads
    Colour Grey (GY)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION SD4X2-PVC-GY
    Pack Cont. 9.14m
    Package Content packed in box
    Type SD4X2
    Fixing Hole Centres (F) 4.0"
    Fixing Hole Centres (F) 101.6mm
    Height (H) 52.6mm
    Length (L) 1.83m
    Width (W) 101.6mm
    Width (W2) 101.6mm
    Width (W6) 38.1mm
    Width (W6) 1.5"
    CE Certification No
    CSA Certified Yes
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Specifications CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin US
    Customs Number 3925902000
    GTIN-13 / EAN 4031026719351
    ETIM 7.0 Key EC000059
    ETIM 8.0 Key EC000059
    ETIM 9.0 Key EC000059
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
