22/11/2024

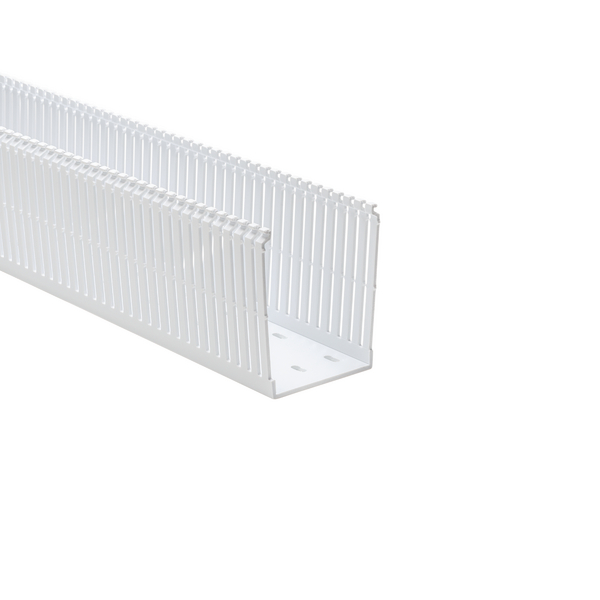

SLHD4X5-PVC-WH
Art.-No. 184-22207 | SLHD4X5-PVC-WH |  Details

Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance.

    Package size
    Add to watchlist
    Downloads
    Colour White (WH)
    Material Polyvinylchloride - rigid extrusion grade (PVC)
    PART DESCRIPTION SLHD4X5-PVC-WH
    Pack Cont. 21.34m
    Package Content packed in carton
    Type SLHD4X5
    Height (H) 103.40mm
    Length (L) 2.13m
    Width (W) 101.60mm
    CE Certification Yes
    CSA Certified Yes
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Specifications CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin US
    Customs Number 3925902000
    GTIN-13 / EAN 4031026588926
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
