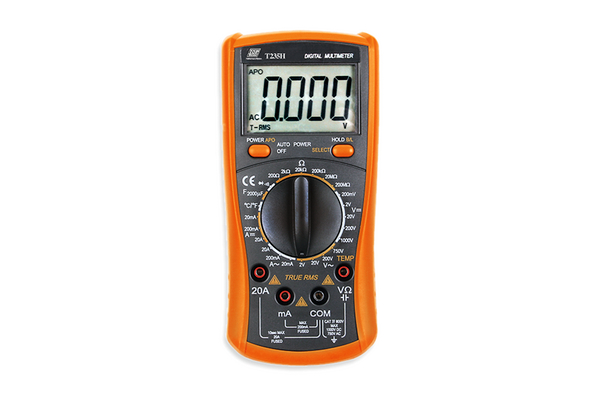

Electrician's Digital Multimeter
Art.-No. 911-00002 | T235H-MET/PL-GY/OG |  Details

    • Backlit
    • Large display
    • Temperature
    • Data hold
    • Capacitance
    Show more
    Add to watchlist
    CAT- Rating CATIV 600V
    Colour Dark Grey (DKGY), Orange (OG)
    Material Metal (MET), Plastic (PL)
    PART DESCRIPTION T235H-MET/PL-GY/OG
    Product Family T235H
    Product Group Electrician's Digital Multimeter
    Type T235H
    AC Current (+Accuracy) 20mA/ 200mA/ 20A (±2.0% + 5 Digit)
    AC Voltage (+Accuracy) 2/ 20/ 750V (±1.2 % + 10 Digit)
    Capacitance (+Accuracy) 2nF/ 20nF/ 200nF / 2000μF/ 20mF (±2.5 % + 20 Digit)
    DC Current (+Accuracy) 20μA/ 2μA/ 20mA/ 200mA/ 20A (±0.8 % + 3 Digit)
    DC Voltage (+Accuracy) 200mV/ 2/ 20/ 200/ 1000V (±0.5% + 3 Digit)
    Height (H) 27mm
    Length (L) 190mm
    Resistance (+Accuracy) 2kΩ/ 20kΩ/ 200kΩ/ 200/ 2MΩ/ 20MΩ (±1.2% + 4 Digit)
    Temperature Measuring Range (+Accuracy) -20°C to 1000°C (±0.8 % + 4 Digit)
    Weight/Unit 0.32kg
    Width (W) 88mm
    Accuracy
    [+-1.2% + 4 Digit]
    Parameter
    [2kΩ/ 20kΩ/ 200kΩ/ 200/ 2MΩ/ 20MΩ]
    Feature
    [Resistance (Ω)]
    Accuracy
    [+-0.8% + 3 Digit]
    Parameter
    [20րA/ 2րA/ 20mA/ 200mA/ 20A]
    Feature
    [DC Current (A)]
    Accuracy
    [+-0.8% + 4 Digit]
    Parameter
    [-20 to +1000°C]
    Feature
    [Temperature (°C)]
    Accuracy
    [+-2.0% + 5 Digit]
    Parameter
    [20mA/ 200mA/ 20A]
    Feature
    [AC Current (A)]
    Accuracy
    [+-2.5% + 20 Digit]
    Parameter
    [2nF/ 20nF/ 200nF / 2000 րF/ 20mF]
    Feature
    [Capacitance (F)]
    Accuracy
    [1999 Counts]
    Parameter
    [3 1/2 Digits]
    Feature
    [Display]
    Accuracy
    [+-0.5% +3 Digit]
    Parameter
    [200mV/2 / 20/ 200/ 1000V]
    Feature
    [DC Voltage (V)]
    Parameter
    [40 - 400Hz]
    Feature
    [AC Frequency Response]
    Parameter
    [10MΩ]
    Feature
    [Input Impedance]
    Accuracy
    [+-1.2% + 10 Digit]
    Parameter
    [2/ 20/ 750V]
    Feature
    [AC Voltage (V)]
    Accuracy Parameter Feature
    +-1.2% + 4 Digit
    		 2kΩ/ 20kΩ/ 200kΩ/ 200/ 2MΩ/ 20MΩ
    		 Resistance (Ω)
    +-0.8% + 3 Digit
    		 20րA/ 2րA/ 20mA/ 200mA/ 20A
    		 DC Current (A)
    +-0.8% + 4 Digit
    		 -20 to +1000°C
    		 Temperature (°C)
    +-2.0% + 5 Digit
    		 20mA/ 200mA/ 20A
    		 AC Current (A)
    +-2.5% + 20 Digit
    		 2nF/ 20nF/ 200nF / 2000 րF/ 20mF
    		 Capacitance (F)
    1999 Counts
    		 3 1/2 Digits
    		 Display
    +-0.5% +3 Digit
    		 200mV/2 / 20/ 200/ 1000V
    		 DC Voltage (V)
      40 - 400Hz
    		 AC Frequency Response
      10MΩ
    		 Input Impedance
    +-1.2% + 10 Digit
    		 2/ 20/ 750V
    		 AC Voltage (V)
    Country of Origin CN
    GTIN-13 / EAN 6005242023484
