Fixing tie for hole (round), outside serrated, ∅3.0-30.0mm, natural, 100pcs.
Nr. articol 126-00071 | OS150-PM6-WPJ-PA66-NA |  Detalii

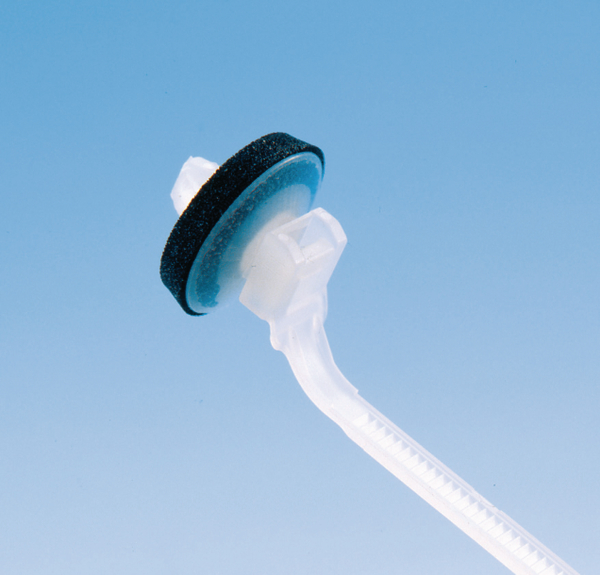

    • One-piece fixing ties with cellular rubber disc
    • Especially suitable for door and tailgate harnesses used for car body applications
    • Made from PA66 heat-stabilised material

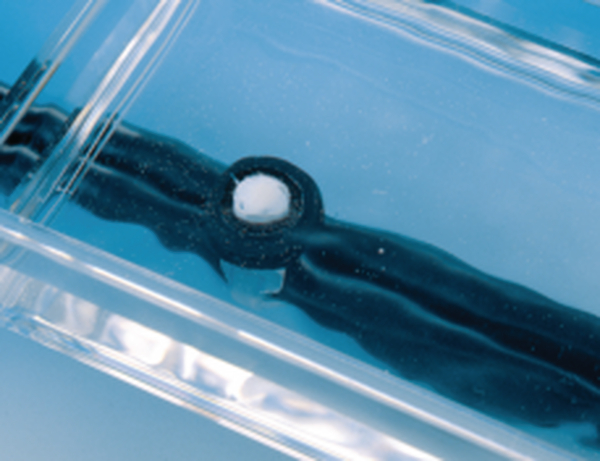

    • Cellular rubber disc minimises ingress of dust, dirt and splash water
    Adăugați la lista de urmărire

    Solicitați acum oferta dumneavoastră individuală

     Solicitați oferta
    Downloads

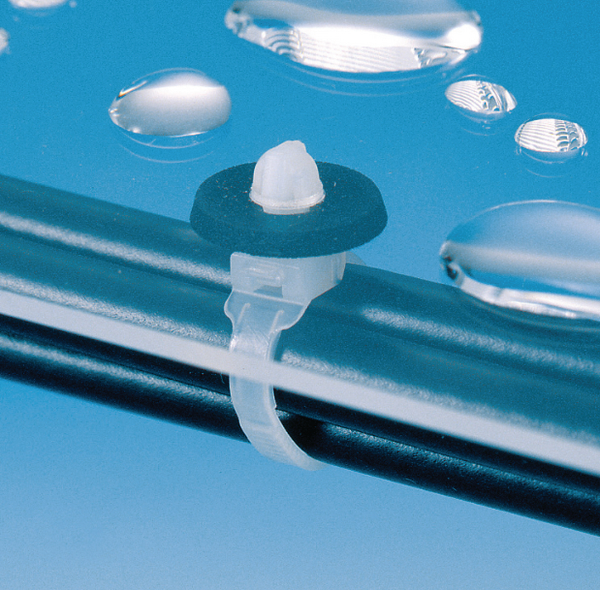

    Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors . We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION OS150-PM6-WPJ-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family for round holes, sealed
    Product Group 1-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type OS150-PM6-WPJ
    Bundle Diameter max (metric) 30.0mm
    Bundle ∅ 3.0-30.0mm
    Bundle ∅ min. 3.0mm
    Disc ∅ 17.0mm
    Length (L) 150mm
    Min.Tensile Strength 100N

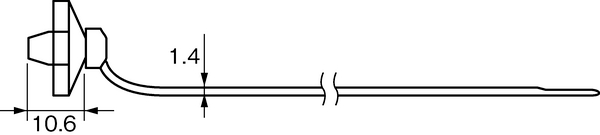

    Thickness (T) 1.4mm
    Width (W) 4.0mm
    Width (W2) 8.0mm
    for Hole ∅ (FH) 5.8 - 6.2 mm
    for Panel Thickness min - max 0.6 - 2.3 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +80 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387950861
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
