Fixing tie for hole (oval), outside serrated, ∅1.0-30mm, black, 100pcs.
Nr. articol 126-00131 | OS170-PM712-PA66HSUV-BK |  Detalii

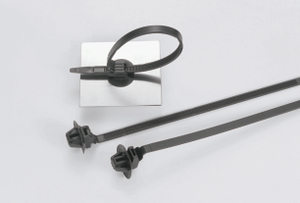

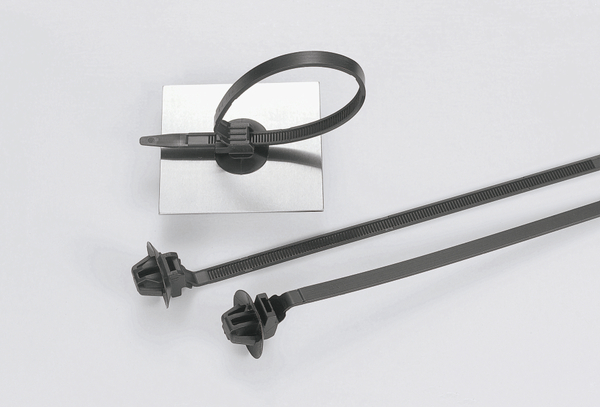

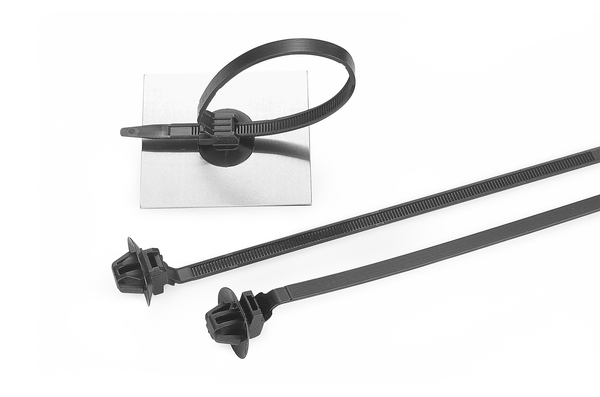

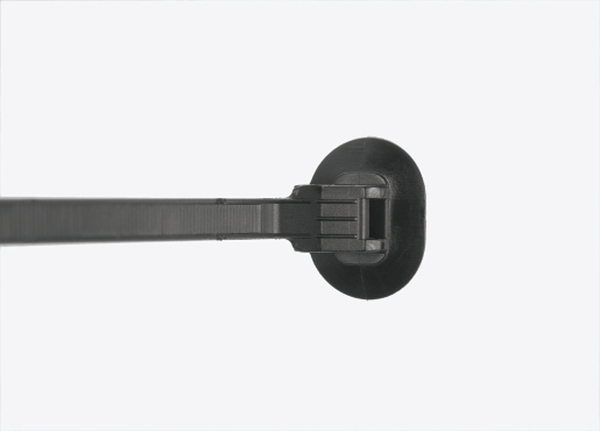

One Piece Fixing Tie T50SOSKSFT62x122PT1.7-2.3 for oval holes.

    • Easy to install without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
    • Cable tie head always situated in a defined position
    • Versions for oval holes feature anti-twist protection
    arată mai mult
    Adăugați la lista de urmărire

    Solicitați acum oferta dumneavoastră individuală

     Solicitați oferta
    Downloads
    Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
    Colour Black (BK)
    Fixation Method Arrowhead for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    PART DESCRIPTION OS170-PM712-PA66HSUV-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family for oval holes
    Product Group 1-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type OS170-PM712
    Bundle Diameter max (metric) 30mm
    Bundle ∅ 1.0-30mm
    Bundle ∅ min. 1.0mm
    Disc ∅ 16,0 x 21,0mm
    Fixing Hole Shape Oval
    Height (H) 12mm
    Length (L) 170mm
    Min.Tensile Strength 150N
    Thickness (T) 1.5mm
    Weight/Unit 0.00162kg
    Width (W) 5.0mm
    for Hole ∅ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 1.6 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387960310
    Packaging 1 - Height (m) 0.035m
    Packaging 1 - Length (m) 0.33m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00254m³
    Packaging 1 - Weight (kg) 0.162001kg
    Packaging 1 - Width (m) 0.22m
    Packaging 3 - Height (m) 0.345m
    Packaging 3 - Length (m) 0.455m
    Packaging 3 - Qty 2500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0494m³
    Packaging 3 - Weight (kg) 4.490025kg
    Packaging 3 - Width (m) 0.315m
    Packaging 4 - Height (m) 1.179m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 37500
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.132m³
    Packaging 4 - Weight (kg) 88.35kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
