Fixing tie for hole (round), outside serrated, ∅12.0-41.0mm, black, 100pcs.
Nr. articol 131-14160 | RI160-PA12-BK |  Detalii

One Piece Fixing Tie with Rivet RI 160.

    • Simple to install with wings to lock ties firmly in place
    • Releasable and reusable
    • RI ranges are conventional 'serrated' cable ties
    Adăugați la lista de urmărire

    Solicitați acum oferta dumneavoastră individuală

     Solicitați oferta

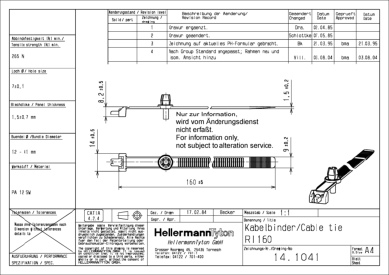

    Downloads Descărcare CAD
    Application Offering a very secure fixing, particularly in applications suffering from vibration, these rivet fixing ties are simple and quick to install. Designed originally for the automotive industry they are now widely used in many industries as diverse as agriculture and ship building.
    Colour Black (BK)
    Fixation Method Rivet Fixing
    Identification Plate Position none
    Material Polyamide 12 (PA12)
    PART DESCRIPTION RI160-PA12-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Rivet RI Series
    Product Group 1-Piece Fixing Ties with rivet, releasable
    Releasable Closure (Yes/No) Yes
    Short Description Fixing Tie 160x9.0 black
    Tie Closure plastic pawl
    Type RI160
    Variant Outside Serrated
    Bundle Diameter max (metric) 41.0mm
    Bundle ∅ 12.0-41.0mm
    Bundle ∅ min. 12.0mm
    Length (L) 160mm
    Min.Tensile Strength 265N
    Thickness (T) 1.5mm
    Weight/Unit 0.002671kg
    Width (W) 9.0mm
    for Hole ∅ (FH) 6.9 - 7.1 mm
    for Panel Thickness min - max 0.8 - 2.2 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026115290
    Packaging 1 - Height (m) 0.055m
    Packaging 1 - Length (m) 0.25m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00303m³
    Packaging 1 - Weight (kg) 0.27608kg
    Packaging 1 - Width (m) 0.22m
    Packaging 3 - Height (m) 0.171m
    Packaging 3 - Length (m) 0.56m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0172m³
    Packaging 3 - Weight (kg) 3.0998kg
    Packaging 3 - Width (m) 0.18m
    Packaging 4 - Height (m) 1.171m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.124m³
    Packaging 4 - Weight (kg) 169.8kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
