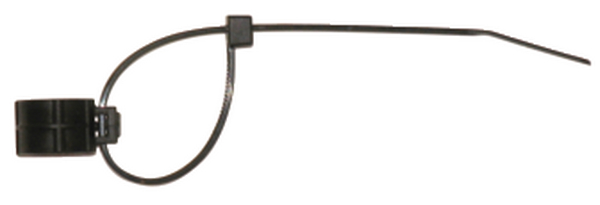

Fixing tie with pipe/tube holder, inside serrated, ∅5-30mm, black, 100pcs.
Nr. articol 156-00520
| T30ROC5J-PA66HSUV-BK
|
Detalii
- Fixed the cable and piping in the tie, the clip portion is freely moved cable installed.
- The clip portion can be attached to the cable of up to 5mm diameter in one touch.
- After putting the cable in the clip part, you can adjust the position of the cable by sliding with anti-slip function, the degree of freedom of design is enlarged.
Solicitați acum oferta dumneavoastră individuală
Solicitați oferta
Mai multe produse în acest grup de produse:
| Application | Can be used for fixing on cables, piping, and sliding at the same time. |
| Cable Tie | Polyamide 6.6, heat and UV-stabilised (PA66HSUV) |
| Colour | Black (BK) |
| Fixation Method | Omega Clip |
| Foot Part | Polyamide 6.6, heat and UV-stabilised (PA66HSUV) |
| Identification Plate Position | none |
| Key product features | lockable, rotatable |
| Material | Polyamide 6.6, heat and UV-stabilised (PA66HSUV) |
| PART DESCRIPTION | T30ROC5J-PA66HSUV-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | Omega clip tie T30ROC5J_Series |
| Product Group | 2-piece fixing ties with pipe clip |
| Releasable Closure (Yes/No) | No |
| Type | T30ROC5J |
| Attach to Diameter | 0.43 " |
| Attach to Ø | 11.0 |
| Bundle Diameter max (metric) | 30mm |
| Bundle ∅ | 5-30mm |
| Bundle ∅ min. | 5mm |
| Cable Tie Head Height (metric) | 4.4mm |
| Cable Tie Head Length (metric) | 5.9mm |
| Cable Tie Head Width (metric) | 6.1mm |
| Length (L) | 152mm |
| Min.Tensile Strength | 135N |
| Nominal ∅ | 5.0mm |
| Thickness (T) | 1.2mm |
| Width (W) | 3.5mm |
| ∅ max. 2. loops | 5mm |
