Fixing tie with pipe/tube holder, inside serrated, ∅45.0mm, black, 2000pcs.
Nr. articol 156-00419 | T50ROC15-18CBTO-SD-SET-PA66HS/PA66HIRHS-BK |  Detalii

Pipe Clip CBTO, twistable 90°.

    • For post-installation of additional cables for pre-assembled cable looms
    • Variety of twist angles and even different loop directions provide flexibility for cable routing
    • twistable 90°
    • CBTO-series for cable ties up to 5 mm
    Adăugați la lista de urmărire

    Solicitați acum oferta dumneavoastră individuală

     Solicitați oferta

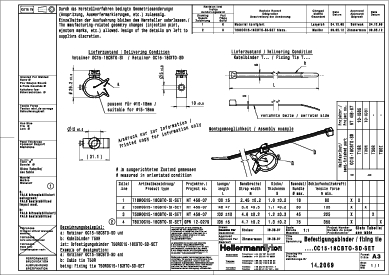

    Downloads Descărcare CAD
    Application For post-installation of additional cables for pre-assembled cable looms and variety of twist angles and even different loop directions provide flexibility for cable routing. CBTO-series for cable ties up to 5 mm.
    Colour Black (BK)
    Content 3000 T50R + 3000 OC15-18CBTO
    Fixation Method Omega Clip
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROC15-18CBTO-SD-SET-PA66HS/PA66HIRHS-BK
    Pack Cont. 2000pcs.
    Package Content packed in box
    Product Group 2-Piece Fixing Ties with Pipe, twistable 90°
    Releasable Closure (Yes/No) No
    Short Description 2-Piece fixing tie 246.4x12.7 mm, with pipe, PA66HIRHSUV, black
    Tie Closure plastic pawl
    Type T50ROC15-18CBTO-SD-SET
    Variant Inside Serrated
    Attach to Ø 15.0 - 18.0
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 45.0mm
    Length (L) 202mm
    Weight/Unit 0.0035kg
    Width (W) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026292991
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 7.65kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 174.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
