21/11/2024

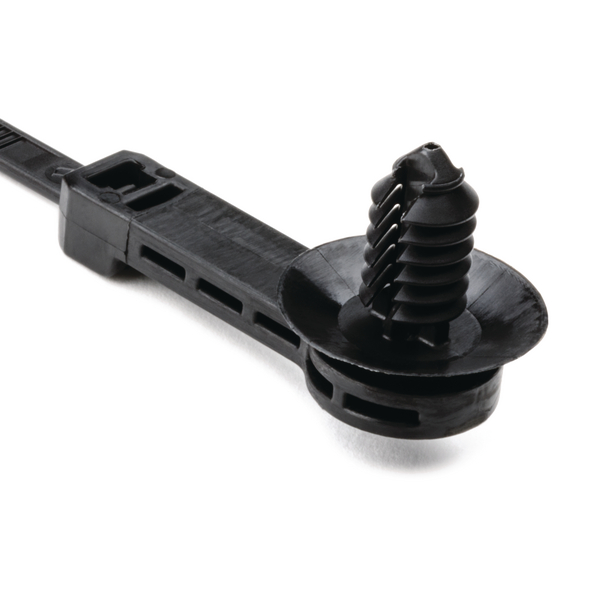

Fixing tie for hole (round), outside serrated, ∅2.0-50.0mm, black, 500pcs.
Nr. articol 157-00150 | T50ROSFT6SO25A-PA66HIRHSUV-BK |  Detalii

T50ROSFT6SO12.5A and T50ROSFT6SO25A.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Adăugați la lista de urmărire

    Solicitați acum oferta dumneavoastră individuală

     Solicitați oferta
    Downloads
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROSFT6SO25A-PA66HIRHSUV-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family With offset 12.5 and 25.0 mm
    Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Ties with Fir Tree and Disc, with Stand-off, for Round Holes
    Type T50ROSFT6SO25A
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Disc ∅ 19.0mm
    Height (H) 21.2mm
    Length (L) 230.0mm
    Length (L2) 25.0mm
    Min.Tensile Strength 222.4N
    Offset Length 25.0mm
    Panel Thickness max. 0.6 - 6.65mm
    Weight/Unit 0.0014kg
    Width (W) 5.1mm
    for Hole ∅ (FH) 6.1 - 7.0 mm, 6.35 mm (hexagonal)
    for Panel Thickness min - max 0.6 - 6.7 mm
    for Panel Thickness min - max 0 - 0.3 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026458229
    Packaging 1 - Length (m) 0.3556m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.700001kg
    Packaging 1 - Width (m) 0.6096m
    Packaging 3 - Height (m) 0.3730625m
    Packaging 3 - Length (m) 0.587375m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.063m³
    Packaging 3 - Weight (kg) 5.020006kg
    Packaging 3 - Width (m) 0.2873375m
    Packaging 4 - Height (m) 1.263m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.212m³
    Packaging 4 - Weight (kg) 81.24kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
