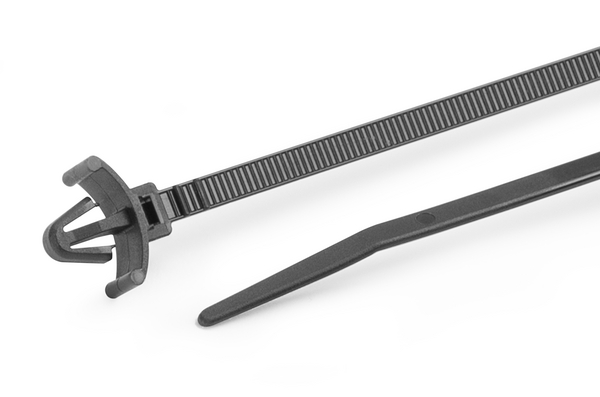

Fixing tie for hole (round), inside serrated, ∅1.5-34.0mm, black, 500pcs.
Nr. articol 111-85360 | T50SL6-PA66HS-BK |  Detalii

A wide range of arrowhead fixing ties which are suitable for different panel thicknesses and hole diameters.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    Adăugați la lista de urmărire

    Solicitați acum oferta dumneavoastră individuală

     Solicitați oferta
    Downloads
    Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SL6-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in pcs.
    Product Family for round holes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
    Releasable Closure (Yes/No) No
    Short Description 1-piece fixing tie with arrowhead, with wings 165x4.6 mm, heat stabilised, black
    Tie Closure plastic pawl
    Type T50SL6
    Variant Inside Serrated
    Bundle Diameter max (metric) 34.0mm
    Bundle ∅ 1.5-34.0mm
    Bundle ∅ min. 1.5mm

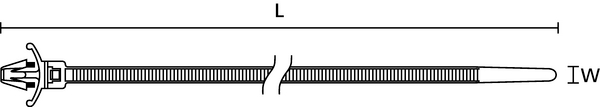

    Length (L) 165mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.5 – 2.5mm
    Thickness (T) 1.2mm
    Weight/Unit 0.001557kg
    Width (W) 4.6mm
    Width (W2) 18.5mm
    for Hole ∅ (FH) 6.3 - 7.5 mm
    for Panel Thickness min - max 0.5 - 2.5 mm
    for Panel Thickness min - max 0 - 0.1 "
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 4031026107271
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.44m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01327m³
    Packaging 1 - Weight (kg) 0.778501kg
    Packaging 1 - Width (m) 0.335m
    Packaging 3 - Height (m) 0.364m
    Packaging 3 - Length (m) 0.563m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0777m³
    Packaging 3 - Weight (kg) 8.74601kg
    Packaging 3 - Width (m) 0.379m
    Packaging 4 - Height (m) 1.236m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.187m³
    Packaging 4 - Weight (kg) 125.952kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
