Fixing tie for edge, outside serrated, ∅1.0-35.0mm, black, 500pcs.
Nr. articol 126-00426 | T50SOSEC34E-PA66HS-BK | Detalii

1-Piece Fixing Tie with EdgeClip for parallel cable routing to the edge.

Easy assembly, just clip on per hand
For edges of 1 - 3 mm, 3 - 6 mm, 4 - 6 mm or 6 - 8 mm
Integrated metal clamp holds clip firmly in place
Clamp consists of double tempered steel spring
Ideal for applications where holes or adhesives are not suitable

arată mai mult

Adăugați la lista de urmărire

Solicitați acum oferta dumneavoastră individuală

Solicitați oferta

Găsiți un distribuitor în apropierea dumneavoastră

Downloads

Mai multe produse în acest grup de produse:

1-piece fixing ties for edges >

Acest produs face parte din:

Sample Pack ENG White Goods CTF

Base Data

Application	These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. Once the cable tie is fastened around the cables the EdgeClip is presented ready for attaching to the panel. Widely used within the automotive and panel building industries these cable ties and EdgeClips save time and money. The silver-grey clamp, the heart of our EdgeClips, consists of doubletempered spring steel in accordance with DIN EN 10132-4 C75S. The spring steel gives the clamp both the necessary rigidity to provide high pull-off forces and also sufficient flexibility for various possible applications. The double coating is applied initially with a zinc plate system followed by inorganic surface sealing. Naturally, no chromium (VI) is used in this process. The clamp therefore complies with the current EU Directive 200/53/EC on end of life vehicles and the prohibition on heavy metals. The refined spring-steel clamp also fulfils the requirements for resistance to salt spray stipulated in DIN EN ISO 9227 NSS (min. 840 h without corrosion of base metal) and DIN EN ISO 6270-Z-CH (min. 720 h without corrosion of base material). This solution has therefore been approved by many OEMs for exposed installation locations, e.g. in engine compartments and the running-gear area.
Colour	Black (BK)
Description	HellermannTyton’s Cable Tie with Edge Clip is designed to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. The clip is easy to secure, and the extraction force is high due to the integrated metal clamp that holds the edge clip in place. This fastener is molded as a one-piece clip and tie combination.
Fixation Method	Edge Clip
Identification Plate Position	none
Internet Customer Notice	Scroll down for alternative automation-ready products.
Key product features	products for automatic tools
Material	Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION	T50SOSEC34E-PA66HS-BK
Pack Cont.	500pcs.
Package Content packed in	bag
Product Family	EdgeClip-Series, 1.0 - 3.0 mm, side fixing
Product Group	1-piece fixing ties for edges
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T50SOSEC34E
Variant	Outside Serrated

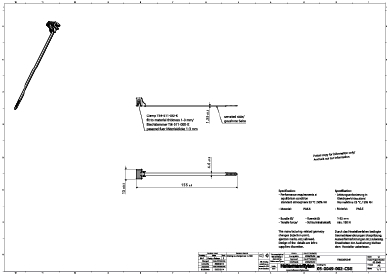

Product Dimensions

Bundle Diameter max (metric)	35.0mm
Bundle ∅	1.0-35.0mm
Bundle ∅ min.	1.0mm
Height (H)	1.35mm
Length (L)	155.0mm
Length (L2)	15.0mm
Min.Tensile Strength	180N
Panel Thickness max.	1.0 - 3.0mm
Weight/Unit	0.002465kg
Width (W)	4.6mm
for Panel Thickness min - max	1 - 3 mm
for Panel Thickness min - max	0 - 0.1 "

Downloads

Specifications

ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Recognized (US and Canada)	No
UV-Stabilised	No

Logistics and Packaging


Country of Origin	DE
Customs Number	39269097
GTIN-13 / EAN	4031026663753
Packaging 1 - Height (m)	0.1m
Packaging 1 - Length (m)	0.3m
Packaging 1 - Qty	500
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.0087m³
Packaging 1 - Weight (kg)	1.263kg
Packaging 1 - Width (m)	0.29m
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	5500
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	14.713kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	66000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	197.622kg
Packaging 4 - Width (m)	0.8m
