Bundling clip for stud, L=60.0mm, SO=36.5mm, black, 1000pcs.
Nr. articol 151-03330 | BC60OS36.5SB6-PA66-BK Detalii

Solicitați acum oferta dumneavoastră individuală

Colour Black (BK)
Material Polyamide 6.6 (PA66)

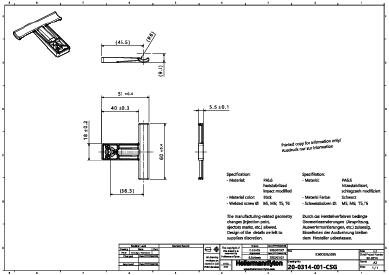

PART DESCRIPTION BC60OS36.5SB6-PA66-BK
Pack Cont. 1000pcs.
Package Content packed in bag
Type BC60OS36.5SB6
Bundling Bar Length 60.0mm
Height (H) 5.5mm
Length (L) 60.0mm
Length (L2) 18.0mm
Offset Length 36.5mm
Stud ∅ M5, M6, T5, T6
Weight/Unit 0.003093kg
Width (W) 51.0mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026651590
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.55m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0209
Packaging 1 - Weight (kg) 3.136597kg
Packaging 1 - Width (m) 0.475m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 13.366388kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 181.416kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
