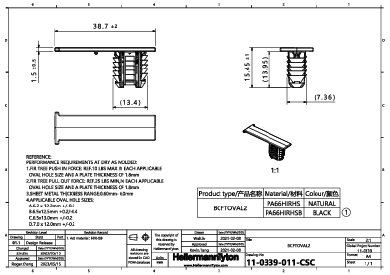

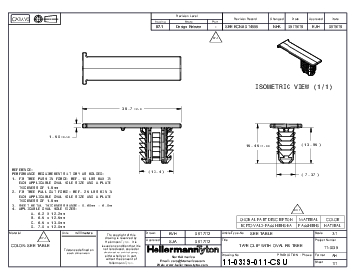

Bundling clip for hole (oval), L=38.7mm, natural, 10000pcs.
Nr. articol 151-01240 | BCFTOVAL2-PA66HIRHS-NA |  Detalii

Bundling clip with oval fir tree provides an uncomplicated method for fastening bundles, hoses, or pipes.

    • Simple installation, tool-free
    • Is attached to the bundle element with cable ties or adhesive tape
    • The oval base geometry serves as anti-twist protection and for defined cable routing
    Adăugați la lista de urmărire

    Solicitați acum oferta dumneavoastră individuală

     Solicitați oferta
    Downloads
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Colour Natural (NA)
    Fixation Method Fir Tree for oval holes
    Internet Customer Notice Scroll down for alternative automation-ready products.
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BCFTOVAL2-PA66HIRHS-NA
    Pack Cont. 10000pcs.
    Package Content packed in bag
    Product Family Oval holes
    Product Group Bundling Clips with Fir Tree
    Type BCFTOVAL2
    Bundling Bar Length 1.52"
    Bundling Bar Length 38.7mm
    Fixing Hole Shape Oval
    Height (H) 15.45mm
    Height (H2) 13.95mm
    Length (L) 38.7mm
    Panel Thickness max. 0.6 - 6.0mm
    Weight/Unit 0.001103kg
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026477800
    Packaging 1 - Qty 10000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 11.143kg
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 11.913kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 150000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 199.695kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
