Connector clip for hole (round), EWCAP-005-11, black, 500pcs.
Nr. articol 151-02873 | CC11FT6TS-PA66HIRHS-BK |  Detalii

ConnectorClip with Turnstop.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    arată mai mult
    Adăugați la lista de urmărire

    Solicitați acum oferta dumneavoastră individuală

     Solicitați oferta
    Downloads
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC11FT6TS-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag

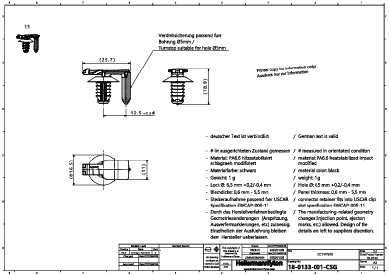

    Type CC11FT6TS
    Disc ∅ 16.5mm
    Height (H) 18.9mm
    Length (L) 25.7mm
    Length (L2) 12.5mm
    Panel Thickness max. 0.6 - 5.5mm
    Weight/Unit 0.00089kg
    Width (W) 16.5mm
    Width (W2) 11.0mm
    for Hole ∅ (FH) 6.1 - 6.7 mm
    for Panel Thickness min - max 0.6 - 5.5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026621036
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 0.911815kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 13000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 12.673595kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 156000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 173.112kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
