Corrugated tube clip for hole (round), nom∅13.0mm, black, 500pcs.
Nr. articol 151-00019 | CTC13FT6LG-PA66HIRHS-BK |  Detalii

The tubing is clicked into the CTC clamp and is held firmly.

    • CTC clamps for a variety of nominal diameters
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Tube is guided accurately by clicking
    • Axial slipping is prevented by the inside profile of the clamp
    arată mai mult
    Adăugați la lista de urmărire

    Solicitați acum oferta dumneavoastră individuală

     Solicitați oferta
    Downloads Descărcare CAD
    Application CTC clamps are used for example in the automotive, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.
    Colour Black (BK)
    Fixation Method Fir Tree
    Key product features for convoluted tubes or with rib, reusable, removable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CTC13FT6LG-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family CTC-Series
    Product Group Fixing elements for corrugated tubing, with fir tree
    Short Description Fixing Elements with Fir Tree for Corrugated Tubing black
    Type CTC13FT6LG
    Variant Clips

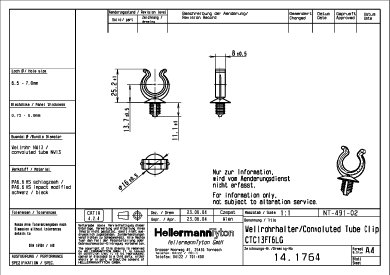

    Attach to Ø NW13
    Disc ∅ 16.0mm
    Height (H) 25.2mm
    Height (H2) 11.1mm
    Nominal ∅ 0.5"
    Nominal ∅ 13.0mm
    Panel Thickness max. 0.75 - 6.0mm
    Weight/Unit 0.00126kg
    Width (W) 8.0mm
    for Hole ∅ (FH) 6.5 - 7.0 mm
    for Panel Thickness min - max 0.8 - 6 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026250175
    Packaging 1 - Height (m) 0.3m
    Packaging 1 - Length (m) 0.625m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0825m³
    Packaging 1 - Weight (kg) 0.683478kg
    Packaging 1 - Width (m) 0.44m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 9000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.122604kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 108000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 178.368kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
